The GW Instek LCR-6300 is a precision LCR meter ideal for laboratory use, equipped with a 3.5” color LCD. Offering an accuracy between 0.05% and 0.1%, it provides exact LCR circuit measurements. This meter supports a quadruple display, allowing four values to be viewed simultaneously. It can perfor ...Read more
GW Instek - LCR-6300

FEATURES:

  • High Precision – Accuracy of 0.05% to 0.1% for precise measurements.

  • Quadruple Display – Shows four values at once.

  • Multiple Measurements – Supports 16 parameter combinations plus two monitoring parameters.

  • Test Setup Storage – Saves up to 10 test setups.

  • USB Connectivity – Save data directly to a USB stick.

  • Pass/Fail Judgment – Checks if components meet specifications.

  • 3.5” Color LCD – Clear and easy-to-read display.

  • Lab-Grade Performance – Ideal for laboratory use.




  • Details
  • Specifications

The GW Instek LCR-6300 is a precision LCR meter ideal for laboratory use, equipped with a 3.5” color LCD. Offering an accuracy between 0.05% and 0.1%, it provides exact LCR circuit measurements.

This meter supports a quadruple display, allowing four values to be viewed simultaneously. It can perform 16 primary and secondary parameter measurement combinations and two additional monitoring parameters.

The LCR-6300 can store up to ten test setups and includes a USB connection, enabling measurement data to be saved directly onto a USB stick. Additionally, it features a pass/fail judgment function to verify whether components or products meet the required specifications.

 Measurement range 10Hz ~ 300kHz (±0.01%)
 Precision SLOW/MED: 0.05%, FAST: 0.1%
 Test signal 10.00 mV - 2.00 Vrms (±10%)
100.00 µA ~ 20 mArms (LCR-821)
 Memory size 10 test setups, 10.00 measurement results
 Display 3.5" RGB-LCD (320x240)

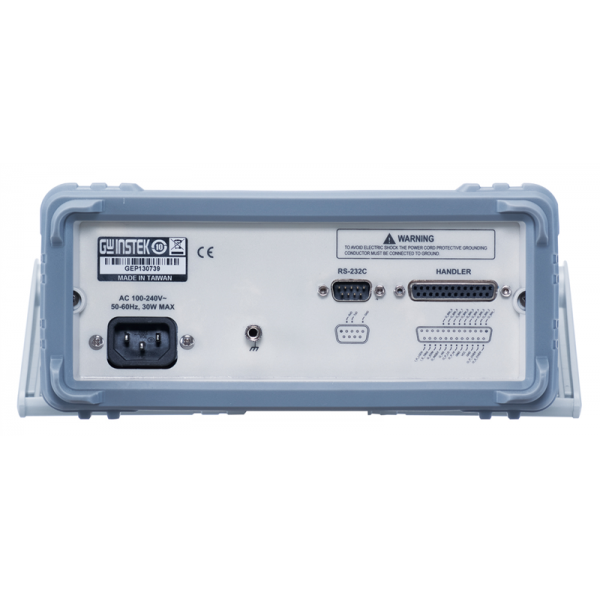

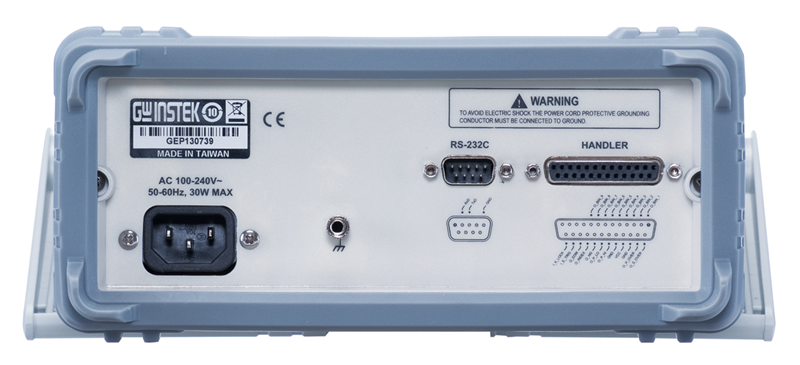

 Connectivity RS-232, Handler, USB host
 Dimensions  265 x 107 x 312 mm
 Weight  3 kg
