The Auto Dispensing Machine is designed for precise and efficient dispensing applications. It utilizes advanced control modes and a user-friendly interface, making it suitable for various industrial environments. This machine is equipped with a powerful stepper motor and supports multiple program ...Read more

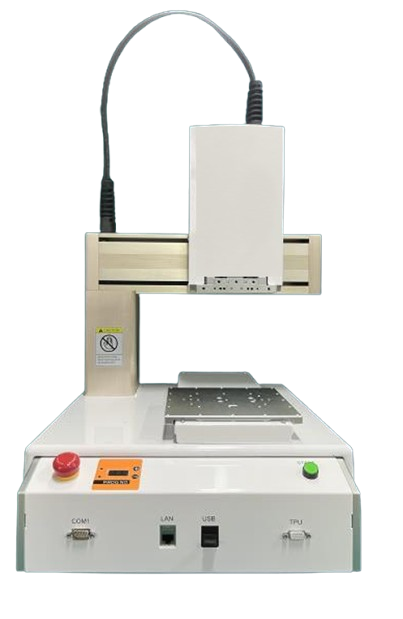

MTSC - Automatic Dispensing Machine

FEATURES

Precise & Accurate: Ensures high-quality dispensing with advanced 3D methods.
Flexible Control: Choose between two control modes for different tasks.
Easy to Program: Simple setup with user-friendly teaching options.
Large Storage: Can save up to 100 programs with many points each.
Easy Integration: Connects with other machines via multiple ports.
Works Anywhere: Reliable in different temperatures and humidity levels.
Compact Design: Fits into tight spaces with its small size.
Bilingual Interface: Supports both Chinese and English.

Details
Specifications

Drive motor	2-phase stepper motor
control mode	PTP (Point to Point) control, CP (Continuous Path) control
Differential compensation function	3D Linear Interpolation, 3D Arc Interpolation
Location teaching method	Remote Teaching (JOG)/Numerical Input (MDI)
Teaching demonstration system	Based on our company's proprietary software, a simple and universal teaching system
Teaching demonstration form	Teaching pendant (optional accessory) for direct teaching. Computer offline teaching based on PC software (optional accessories).
Interface display	Dimension :445mm x 450mm x 650mm Language : Chinese/English
Number of programs	Maximum 1000 point storage/1 program
Simple PLC function	Maximum of 100 programs, maximum of 1000 steps per program
External input/output	I/O-SYS : Input 8 points/output 8 points (optional configuration, multi bit extension) I/O-1 : Input 16 points/Output 16 points (optional configuration, multi bit extension) COM1 : RS232C (for external machine control) COM2 : RS232C (for external machine control) (optional accessory) USB : Used for USB storage connection (C&T data reading, saving, system software backup)
Power Supply	AC 200-240 V (single-phase)
power	200W
Usage environment	Surrounding temperature : 0~40℃ relative humidity : 20-80%（No condensation） altitude : 2000m
