aps-7100series_17020311395
  GWInstek introduces APS-7000 series programmable AC power sources, which consists of 500VA of APS-7050, 1000VA of APS-7100, 2000VA of APS-7200 and 3000VA of APS-7300. APS-7000 series features power characteristics from its linear structure design including low noise, low THD, and high ...Read more

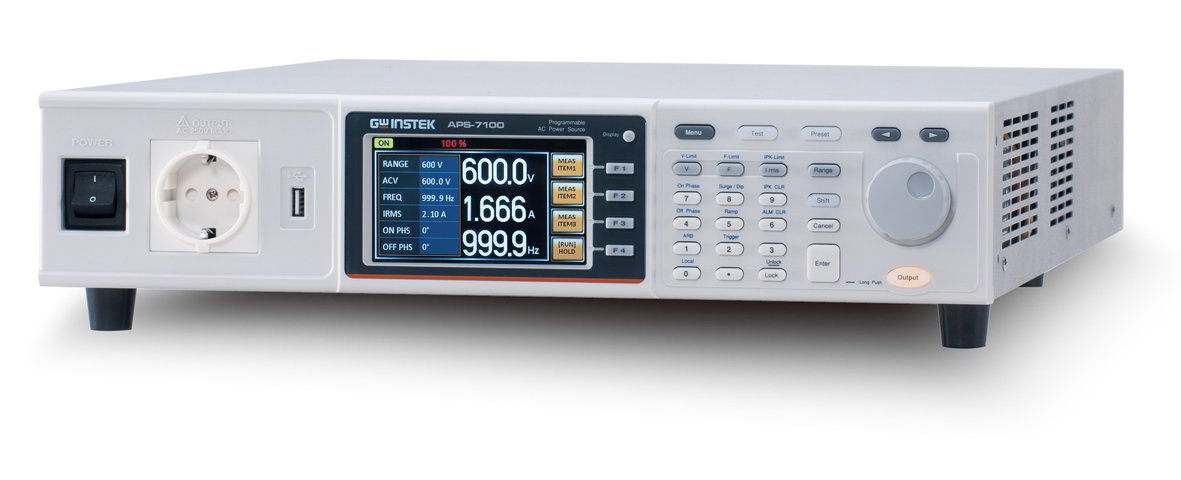

GW Instek - APS 7000 Series Programmable Linear AC Power Sources
Features:
  • 4.3-inch TFT-LCD
  • Output capacity : APS-7050(500VA、310Vrms、4.2Arms);APS-7100 (1000VA、310Vrms、8.4Arms);APS-7200(2000VA、310Vrms、16.8Arms);APS-7300 (3000VA、310Vrms、25.2Arms);Output augmentation by options (0~600Vrms/45~999.9Hz)
  • Low Ripple & Noise
  • Measurement and test functions include VOLT、CURR、PWR、SVA、IPK、IPKH、FREQ、PF、CF
  • Support a small AC current measurement 2mA ~ 35A, Min. resolution 0.01mA(APS- 7050& APS-7100)
  • Reverse Current Alarm Function
  • 10 sets of Sequence function to Edit Output Waveforms/ 10 sets of simulate mode to Rapidly Simulate Transient Power Supply/ 10 sets of Program mode to Define Measurement Sequence/ 10 sets of Panel Memory Function
  • Automatic Execution of Sequence、Simulate、Program mode and Output Function when the Power is on
  • Standard Interfaces: LAN, USB Host, USB Device (APS-7200 and APS-7300 models only)
  • Optional Interfaces: GPIB (APS-001);RS-232 / USB CDC(APS-002 for APS-7050& APS-7100 only);RS-232(APS-007 for APS-7200& APS-7300 only)



  • Details
  • Specifications



GWInstek introduces APS-7000 series programmable AC power sources, which consists of 500VA of APS-7050, 1000VA of APS-7100, 2000VA of APS-7200 and 3000VA of APS-7300. APS-7000 series features power characteristics from its linear structure design including low noise, low THD, and highly stabilized power output that are ideal for the product development and verification of input power with low noise requirement or stereo, video and audio device applications, etc. The maximum rated voltage is 0~ 310Vrms, 25.2Arms, 100.8A peak current and the output frequency range is 45~500.0Hz. Users can conveniently augment the output voltage from 0Vrms to 600Vrms and output frequency from 45Hz to 999.9Hz by purchasing options without sending equipment back to GW Instek.
