The ASR-3000 series is an AC+DC power source, featuring high-speed DC voltage rising and falling time (≦100us). ASR-3000 is ideal for the development of On-board Chargers, Server Powers, LED modules, AC Motors, AC Fans, UPS, and various electronic components, as well as for testing applications of a ...Read more

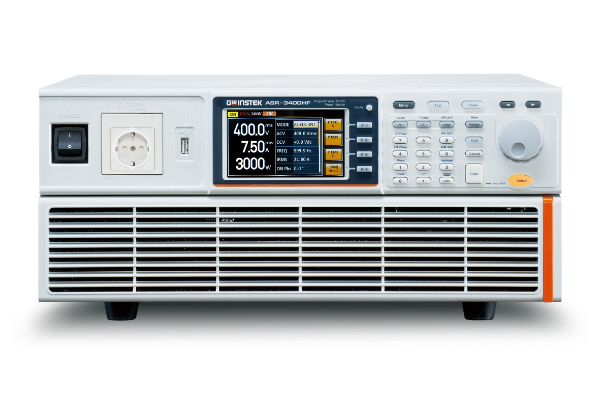

GW Instek - ASR 3000 Series Programmable AC/DC Power Source

Features:

Output Rating: AC 0 – 400 Vrms, DC 0 - ± 570 V
Output Frequency up to 999.9 Hz (ASR-3400HF up to 5000Hz)
DC Output (100% of Rated Power)
Measurement Items: Vrms, Vavg, Vpeak, Irms, IpkH, Iavg, Ipeak, P, S, Q, PF, CF
Voltage and Current Harmonic Analysis(THDv, THDi)
Remote Sensing Capability
OCP, OPP, OTP, AC Fail Detection and Fan Fail Alarm
Support Arbitrary Waveform Function
Output Capacity: 2kVA/ 3kVA/4kVA
Customized Phase Angle for Output On/Off
Sequence and Simulation Function(up to 10 sets)
Interface(std): USB, LAN, RS-232, GPIB
Built-in External Control I/O and External Signal Input
Built-in Output Relay Control
Memory Function (up to 10 sets)
Built-in Web Server

Details
Specifications

The ASR-3000 series is an AC+DC power source, featuring high-speed DC voltage rising and falling time (≦100us).

ASR-3000 is ideal for the development of On-board Chargers, Server Powers, LED modules, AC Motors, AC Fans, UPS, and various electronic components, as well as for testing applications of automotive electrical equipment and home appliances.

There are four models of the series:
1. ASR-3200(2kVA)
2. ASR-3300(3kVA)
3. ASR-3400(4kVA)
4. ASR-3400HF(4kVA, Frequency upto 5kHz)
