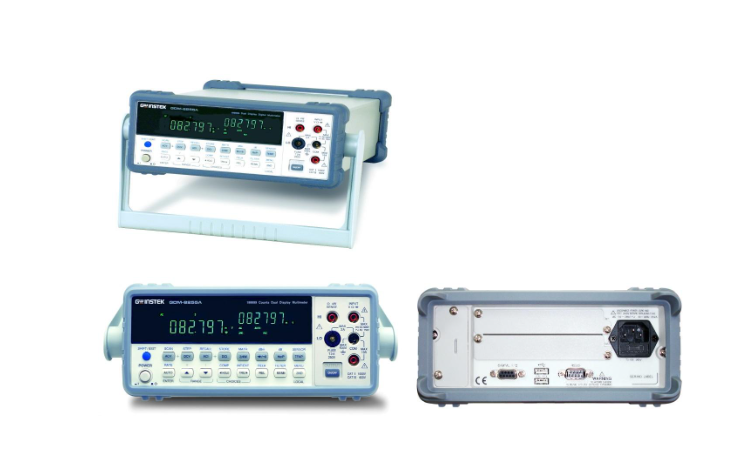

GW Instek - GDM-8255A Dual Display Digital Multimeter

FEATURES :

GDM-8255A 199,999 Counts Display
VFD Two Colors Display
0.012% DCV Accuracy
True RMS (AC, AC+DC)
9 Major Measuring Functions and 10 Advanced Measurement Functions
2W/4W Resistance Measurement
High Voltage 1000V and 10A Current Range
Standard Interface : RS-232C, USB Device, Digital I/O
Free PC Software (DMM-VIEWER), LabVIEW Driver
Optional: 16+2 Channels Scanner Card

Details
Specifications

The GDM-8255A carries an extensive list of standard measurement items with a dual-display allowing two measurement items to be displayed simultaneously. Advanced measurement functions, such as Max/Min, Hold, Relative value and Compare, are suitable for a multiplicity of applications such as production testing, research and field verification. The USB, RS-232C and 9-pin digital I/O interface are included as standard features for romte control and data capturing for ATE.

For convenient PC-based remote control and extensive data capture, the GDM-8255A includes DMM-Viewer software at no additional cost. DMM-Viewer mimics the operation of the multimeters on the PC, allowing you to quickly use the software with little effort.

The optional scanner card (GDM-SC1), creates a self-contained multipoint measurement solution with plug-in design. This approach eliminates the complexities of multipoint measurements and data processing. The scanner lets users effectively measure multiple channels connected to a single GDM-8255A.

Rich Measurement Functions with Enhanced Features
Fast Measurement Speed & Transfer rate
Diverse Measuring Combinations with VFD Dual Color Display
Multiple Standard Interfaces
Convenient PC Software
Effective Multiple Measurement Scanner Card

GDM-8255A Specifications

The specifications apply when the GDM-8255A is powered on for at least 30 minutes under +20°C~+30°C.

	GDM-8255A
FULL SCALE
	199,999 Counts
SAMPLAE RATE
Slow	5 1/2 digits, 10 readings/second
Medium	4 1/2 digits, 30 readings/second
Fast	3 1/2 digits, 60 readings/second
DC VOLTAGE
Range	100mV, 1V, 10V, 100V, 1000V 5 ranges
Accuracy	±(0.012% rdg + 5 digits)
Input Impedance	10MΩ
AC VOLTAGE True RMS
Range	100mV, 1V, 10V, 100V, 750V 5 ranges
Accuracy	20Hz~45Hz : ±(1% rdg + 100 digits) 45Hz ~ 10kHz : ±(0.2% rdg + 100 digits) 10kHz ~ 30kHz :±(1% rdg + 100 digits) 30kHz~100kHz : ±(3% rdg + 200 digits)
Input Impedance	1.1MΩ in parallel with approx. 100pF
DC CURRENT
Range	10mA, 100mA, 1A, 10A 4ranges
Accuracy	10mA , 100mA : ±(0.05% rdg + 15 digits) 1A, 10A range : ±(0.2% rdg + 5 digits)
AC CURRENT True RMS
Range	10mA, 100mA, 1A, 10A 4ranges
Accuracy	10mA , 100mA range: 20Hz ~ 50Hz : ±(1.5% rdg + 100 digits) 50Hz ~ 10kHz : ±(0.5% rdg + 100 digits) 10kHz~20kHz : ±(2% rdg + 200 digits) 1A , 10A range: 50Hz~10kHz : ±(1% rdg + 100 digits)
RESISTANCE
Range	100Ω, 1kΩ, 10kΩ, 100kΩ, 1MΩ, 10MΩ, 100MΩ 7 ranges
2W Accuracy	100Ω range : ±(0.1% rdg + 8 digits)() 1kΩ range : ±(0.08% rdg + 5 digits)() 10kΩ ~ 1MΩ 3 ranges : ±(0.06% rdg + 5 digits) 10MΩ range : ± (0.3% rdg + 5 digits) 100MΩ range : ±(3% rdg + 8 digits)
4W Accuracy	100Ω range : ±(0.05% rdg + 8 digits) 1kΩ ~ 1MΩ 4 ranges : ±(0.05% rdg + 5 digits) 10MΩ range : ±(0.3% rdg + 5 digits) 100MΩ range : ±(3% rdg + 8 digits)
DIODE TEST
	Open Circuit Voltage 2.0V Test Current 0.5mA
FREQUENCY
	10Hz~800kHz
CONTINUITY BEEPER
	1 ~ 1000Ω Define by user
TEMPERATURE
	0° C ~ 300° C : J , K , T Type
OTHER FUNCTIONS
	Auto range / Manual, Math : MX + B/ % / 1/X Max, Min, dBm, dB, REL, Hold, Compare, Store, Recall
DISPLAY
	VFD, Two Colors Display
INTERFACE
	Digital I/O, USB Device, RS-232C
POWER SOURCE
	AC 100V-240V ±10%, 50/60Hz
OPTIONAL
	GDM-SC1 : Multi-channels (16+2) Scanner Card (Up to 2 sets of GDM-SC1 can be installed at same time for one GDM-8255A)
DIMENSIONS & WEIGHT
	265(W) x 107(H) x 350(D) mm Approx. 2.6 kg
Note : (*)USE "REL" Mode
