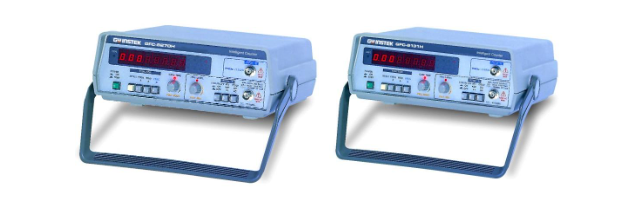

GW Instek - GFC-8270H & GFC-8131H Intelligent Counter

Products

Product Range

FEATURES :

Frequency and Period Measurement
High Resolution at Both High and Low Frequency
0.01Hz~2.7GHz Frequency Range(GFC-8270H)
0.01Hz~1.3GHz Frequency Range(GFC-8131H)
10mV rms High Sensitivity
100nHz Resolution for 1Hz Input
Variable Trigger Level Control
Microprocessor Controlled Intelligent Counter(only GFC-8270H)

Details
Specifications

The GFC-8000 Series performs virtually all of the counting measurements required in laboratories, in terms of both period and frequency. A bright red 8 digit LED display with an included overflow indicator provides a clear view. Both models feature a stable time base with a maximum resolution of 100nHz and 10nS at 1Hz for frequency and period measurement, respectively. Gate time can be configured for fast response (5 digits/10ms) or accuracy (7 digits/s) for more control. For high frequency needs, the GFC-8270H can operate at up to 2.7GHz. The GFC-8000 Series features easy operation with a simple front panel interface, suitable for both portable and bench-top use.

GFC-8270H / GFC-8131H Specifications

The specifications apply when the GFC-8270H / GFC-8131H is powered on for at least 30 minutes under +20°C~+30°C.

DISPLAY
	8 digits with Hz, kHz, MHz, GHz, s, ms, μs, and overflow
GATE TIME
	Variable from 10ms to 10s, or 1 period of input depending on whichever is greater
ACCURACY
	±(resolution ± timebase error)
CHANNEL A
Range	DC coupling: 0.01Hz ~ 120MHz AC coupling: 30Hz ~ 120MHz
Sensitivity	10mV typical, 50mV maximum
Coupling	AC or DC, selectable
Filter	Low pass, selectable in or out for channel A (-3dB point, nominal 100kHz)
Impedance	1MΩ // 40pF
Attenuator	1/1 or 1/20dB
Trigger Level	-2.5VDC ~ +2.5VDC
Adjustment Resolution	For frequency measurement, the maximum resolution is 100nHz for 1Hz and 0.1Hz for 100MHz inputs respectively. For period measurement, the maximum resolution is 10ns for 1Hz input, and 0.1x10-15s for 100MHz inputs respectively.
Display Accuracy	7 digits for 1 sec gate time 6 digits for 100ms gate time 5 digits for 10ms gate time
Period Range	8ns ~ 100ns (at least 7 digits displayed per gate time)
CHANNEL B
Range	50MHz ~ 2.7GHz for GFC-8270H 50MHz ~ 1.3GHz for GFC-8131H
Sensitivity	50mVrms (10mVrms typical) for GFC-8270H 40mVrms (10mVrms typical) for GFC-8131H
Coupling	AC only
TIME BASE
Aging Rate	1ppm per month
Temperature	5ppm, 23°C + 5°C
Line Variation	0.005ppm for + 10% variation
POWER SOURCE
	AC 100V/120V/220V/230V ±10%, 50/60Hz
DIMENSIONS & WEIGHT
	230(W) × 95(H) × 280(D) mm Approx. 2.2kg
