Multi-channel signal outputs to satisfy your diversified signal requirements

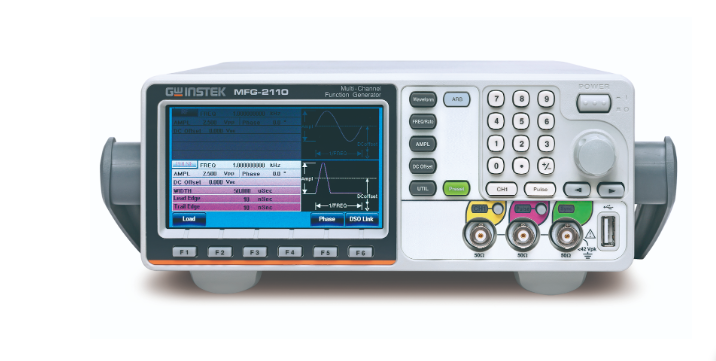

GW Instek launches the brand new MFG-2000 series multi-channel function generator, including MFG-21XX entry-level models and MFG-22XX advanced models. The output channels of MFG-21XX models include one single-channel 10M/20M/30M/60MHz ARB generator ; one 25MHz pulse generator ; one 160MHz or 320MHz RF signal generator (MFG-2160MF/MFG-2160MR) and one power amplifier (MFG-2120MA only);MFG-22XX models include one 30MHz/60MHz dual performance ARB generator; one 25MHzpulse generator; one 160MHz or 320MHz RF signal generator (MFG-2260MFA/MFG-2260MRA) ; and one power amplifier (MFG-2260MFA/MFG-2260MRA only).
MFG-2000 series, which has up to 5 simultaneous output channels (MFG-2260MFA/MFG-2260MRA), including CH1 and CH2 equivalent performance dual channel arbitrary function generator with the maximum 60MHz for both channels; RF signal generator, a standard AFG, which produces the maximum 320MHz sine wave and various modulation RF signals; pulse generator, whose frequency reaches 25MHz; power amplifier, which is ideal for audio range. The above-mentioned five different functionality channels are separately or totally allocated on 10 models, which extend from the basic single-channel AFG with pulse generator models to five-channel models so as to satisfy various educational and industrial applications.
The AFG channel of the MFG-2000 series outputs sine, square, and triangle, etc. The series features true point-by-point output arbitrary waveform characteristics of 200 MHz sample rate, 100MHz waveform repetition rate, 14-bit resolution, and 16k point memory depth. Some models provide various modulation methods such as AM/FM/PM/FSK/PWM, Sweep, Burst, Trigger, 150MHz Frequency Counter. Synchronized dual channel models provide correlated functions, including synchronization, delay, sum, and coupling. RF signal generator, a complete AFG signal source (including ARB), features various modulations, Sweep, and digital modulations such as ASK and PSK and its sine wave frequency is up to 320MHz. A full-function pulse generator with 25 MHz is equipped to all models and its pulse width, rise edge time, fall edge time are adjustable that can be applied as trigger signals. Independent input/output power amplifier with 20W, 10dB, DC-100KHz bandwidth, and distortion less than 0.1% can be applied to the audio application.
MFG-2000 Specifications
The specifications apply when the MFG-2000 is powered on for at least 30 minutes under +20°C~+30°C.
MFG-2000 series specific functions |
||||||
CH1 |
CH2 |
25MHz Pulse Generator |
RF Generator (Function With ARB) |
Power Amplifier |
Modulation /Sweep/Burst/ Frequency Counter |
|
Function With ARB |
Function With ARB |
|||||
MFG-2110 |
●10MHZ |
● |
||||
MFG-2120 |
●20MHZ |
● |
||||
MFG-2120MA |
●20MHZ |
● |
● |
● |
||
MFG-2130M |
●30MHZ |
● |
● |
|||
MFG-2160MF |
●60MHZ |
● |
●160MHZ |
● |
||
MFG-2160MR |
●60MHZ |
● |
●320MHZ |
● |
||
MFG-2230M |
●30MHZ |
●30MHZ |
● |
● |
||
MFG-2260M |
●60MHZ |
●60MHZ |
● |
● |
||
MFG-2260MFA |
●60MHZ |
●60MHZ |
● |
●160MHZ |
● |
● |
MFG-2260MRA |
●60MHZ |
●60MHZ |
● |
●320MHZ |
● |
● |
CH1/ CH2 |
|||||||||||||||
Arbitrary Functions |
|||||||||||||||
ARB function |
Built-in |
||||||||||||||
Sample Rate |
200 MSa/s |
||||||||||||||
Repetition Rate |
100MHz |
||||||||||||||
Waveform Length |
16k points |
||||||||||||||
Amplitude Resolution |
14 bits |
||||||||||||||
Non-Volatile Memory |
10sets 16k points(1) |
||||||||||||||
User-defined output section |
From point 2~16384 |
||||||||||||||
User-defined output marker section |
From point 2 ~ 16384 |
||||||||||||||
Output mode |
1~1048575 cycles or infinite mode |
||||||||||||||
Frequency Characteristics |
|||||||||||||||
Range |
Sine |
60MHz(max) |
|||||||||||||
Square |
25MHz(max) |
||||||||||||||
Triangle, Ramp |
1MHz |
||||||||||||||
|
Resolution |
1μHz |
|||||||||||||
Accuracy Stability |
±20 ppm |
||||||||||||||
Aging |
±1 ppm, per 1 year |
||||||||||||||
Tolerance |
≤1μHz |
||||||||||||||
Output Characteristics(2) |
|||||||||||||||
Amplitude Range |
1mVpp to 10 Vpp (into 50Ω) 2mVpp to 20 Vpp (open-circuit) |
||||||||||||||
Accuracy |
±2% of setting ±1 mVpp (at 1 kHz/into 50Ω without DC offset)) |
||||||||||||||
Resolution |
0.1mV or 4 digits |
||||||||||||||
Flatness |
± 1% (0.1dB) ≦1MHz ± 3% (0.3dB) ≦50 MHz ± 10% (0.9dB) ≦160MHz ± 30% (3dB) ≦320MHz (sinewave relative to 1 kHz/into 50Ω) |
||||||||||||||
Units |
Vpp, Vrms, dBm |
||||||||||||||
Offset |
Range |
±5 Vpk ac +dc (into 50Ω) ±10Vpk ac +dc (Open circuit) |
|||||||||||||
Accuracy |
1% of setting + 5mV+ 0.5% of amplitude |
||||||||||||||
Waveform Output |
Impedance |
50Ω typical (fixed) > 10MΩ (output disabled) |
|||||||||||||
Protection |
Short-circuit protected Overload relay automatically disables main output |
||||||||||||||
Ground Isolation |
42Vpk max |
||||||||||||||
Sync Output |
Range |
TTL-compatible into>1kΩ |
|||||||||||||
Impedance |
50Ω standard |
||||||||||||||
Ground Isolation |
42Vpk max |
||||||||||||||
Sine wave Characteristics(3) |
|||||||||||||||
Harmonic distortion |
–60 dBc DC~200kHz, Ampl>0.1 Vpp –55 dBc 200kHz~1 MHz, Ampl>0.1 Vpp –45 dBc 1MHz~10 MHz, Ampl>0.1Vpp –30 dBc 10MHz~320MHz, Ampl>0.1Vpp |
||||||||||||||
Total harmonic distortion |
1Vpp) DC~100 kHz |
||||||||||||||
Square wave Characteristics |
|||||||||||||||
Rise/Fall Time |
15ns |
||||||||||||||
Overshoot |
5% |
||||||||||||||
Asymmetry |
1% of period +5 ns |
||||||||||||||
Variable duty Cycle |
0.01% to 99.99%(limited by the current frequency setting) |
||||||||||||||
Jitter |
20ppm+500ps(4) |
||||||||||||||
Ramp Characteristics |
|||||||||||||||
Linearity |
0.1% of peak output |
||||||||||||||
Variable Symmetry |
0% to 100% |
||||||||||||||
Pulse Characteristics |
|||||||||||||||
Frequency |
1uHz~25MHz |
||||||||||||||
Pulse Width |
≧20nS(limited by the current frequency setting) |
||||||||||||||
Variable duty Cycle |
0.01%~99.99%(limited by the current frequency setting) |
||||||||||||||
Overshoot |
5% |
||||||||||||||
Jitter |
20ppm +500ps(4) |
||||||||||||||
Pulse Generator |
|||||||||||||||
Amplitude |
1mVpp to 2.5 Vpp (into 50Ω) 2mVpp to 5 Vpp (open-circuit) |
||||||||||||||
Offset |
±1 Vpk ac +dc (into 50Ω) ±2Vpk ac +dc (Open circuit) |
||||||||||||||
Frequency |
1uHz~25MHz |
||||||||||||||
Pulse Width |
20nS~999.9ks(limited by the current frequency setting) |
||||||||||||||
Variable duty Cycle |
0.01%~99.99%(limited by the current frequency setting) |
||||||||||||||
Leading and Trailing Edge Time(5) |
10nS~ 20S(1ns resolution) (limited by the current frequency and pulse width settings) |
||||||||||||||
Overshoot |
5% |
||||||||||||||
Jitter |
100ppm +500ps(4) |
||||||||||||||
RF Generator |
|||||||||||||||
Arbitrary Functions |
|||||||||||||||
ARB function |
Built-in |
||||||||||||||
Sample Rate |
200 MSa/s |
||||||||||||||
Repetition Rate |
100MHz |
||||||||||||||
Waveform Length |
16k points |
||||||||||||||
Amplitude Resolution |
14 bits |
||||||||||||||
User-defined output section |
From point 2~16384 (optional) |
||||||||||||||
Jitter |
20ppm +5ns |
||||||||||||||
Frequency Characteristics |
|||||||||||||||
Range |
Sine |
|
|||||||||||||
Square |
25MHz(max) |
||||||||||||||
Triangle, Ramp |
1MHz |
||||||||||||||
|
Resolution |
1μHz |
|||||||||||||
Accuracy Stability |
±20 ppm |
||||||||||||||
Aging |
±1 ppm, per 1 year |
||||||||||||||
Tolerance |
≤1μHz |
||||||||||||||
Output Characteristics(2) |
|||||||||||||||
Amplitude(into 50Ω) |
1mVpp to 2 Vpp (MFG-2XXXMF) 1mVpp to 1 Vpp (MFG-2XXXMR) |
||||||||||||||
Accuracy |
±2% of setting ±1 mVpp (at 1 kHz/into 50Ω without DC offset)) |
||||||||||||||
Resolution |
0.1mV or 4 digits |
||||||||||||||
Flatness |
± 1% (0.1dB) ≦1MHz ± 3% (0.3dB) ≦50 MHz ± 10% (0.9dB) ≦160MHz ± 30% (3dB) ≦320MHz (sinewave relative to 1 kHz/into 50Ω) |
||||||||||||||
Offset |
±1 Vpk ac +dc (into 50Ω) ±2Vpk ac +dc (Open circuit) |
||||||||||||||
Waveform Output |
Impedance |
50Ω typical (fixed) > 10MΩ (output disabled) |
|||||||||||||
Sine wave Characteristics(3) |
|||||||||||||||
Harmonic distortion |
–60 dBc DC~200kHz, Ampl>0.1 Vpp –55 dBc 200kHz~1 MHz, Ampl>0.1 Vpp –45 dBc 1MHz~10 MHz, Ampl>0.1Vpp –30 dBc 10MHz~320MHz, Ampl>0.1Vpp |
||||||||||||||
Total harmonic distortion |
1Vpp) DC~100 kHz |
||||||||||||||
Square wave Characteristics |
|||||||||||||||
Rise/Fall Time |
15ns |
||||||||||||||
Overshoot |
5% |
||||||||||||||
Asymmetry |
1% of period +5 ns |
||||||||||||||
Variable duty Cycle |
0.01% to 99.99%(limited by the current frequency setting) |
||||||||||||||
Jitter |
20ppm+500ps(4) |
||||||||||||||
Ramp Characteristics |
|||||||||||||||
Linearity |
0.1% of peak output |
||||||||||||||
Variable Symmetry |
0% to 100% |
||||||||||||||
Modulati0n/Sweep |
|||||||||||||||
Modulation Type |
AM,FM,PM,FSK,PWM (The detail same as CH1 modulation specification) |
||||||||||||||
Sweep type |
Frequency |
||||||||||||||
Source |
INT/EXT(INT only for AM,FM,PM, PWM) |
||||||||||||||
PSK |
|||||||||||||||
Carrier Waveforms |
Sine, Square, Triangle, Ramp, Pulse |
||||||||||||||
Modulating Waveforms |
50% duty cycle square |
||||||||||||||
Internal Frequency |
2 mHz to 1 MHz |
||||||||||||||
Phase Range |
0∘~360.0∘ |
||||||||||||||
Source |
Internal / External |
||||||||||||||
ASK |
|||||||||||||||
Carrier Waveforms |
Sine, Square, Triangle, Ramp, Pulse |
||||||||||||||
Modulating Waveforms |
50% duty cycle square |
||||||||||||||
Internal Frequency |
2 mHz to 1 MHz |
||||||||||||||
Amplitude Range |
0%~100.0% |
||||||||||||||
Source |
Internal / External |
||||||||||||||
Power Amplifier |
|||||||||||||||
Input Impedance |
10KΩ |
||||||||||||||
Input voltage |
1.25Vpmax |
||||||||||||||
Working Mode |
Constant Voltage |
||||||||||||||
Gain |
20dB |
||||||||||||||
Output Power (RL=8Ω) |
20W(Square) |
||||||||||||||
Output Voltage |
12.5Vpmax |
||||||||||||||
Output Current |
1.6Amax |
||||||||||||||
Rise/Fall Time |
2.5uS |
||||||||||||||
Full Power Bandwidth |
DC-100KHz |
||||||||||||||
Overshoot |
5% |
||||||||||||||
Total harmonic distortion |
1Vpp) 20Hz~20 kHz |
||||||||||||||
Ground Isolation |
42Vpk max |
||||||||||||||
Advanced Functions |
|||||||||||||||
AM Modulation |
|||||||||||||||
Carrier Waveforms |
Sine, Square, Triangle, Ramp, Pulse, Arb |
||||||||||||||
Modulating Waveforms |
Sine, Square, Triangle, Upramp, Dnramp |
||||||||||||||
Modulating Frequency |
2mHz to 20kHz (Int) DC to 20kHz (Ext) |
||||||||||||||
Depth |
0% to 120.0% |
||||||||||||||
Source |
Internal / External |
||||||||||||||
FM Modulation |
|||||||||||||||
Carrier Waveforms |
Sine, Square, Triangle, Ramp |
||||||||||||||
Modulating Waveforms |
Sine, Square, Triangle, Upramp, Dnramp |
||||||||||||||
Modulating Frequency |
2mHz to 20kHz (Int) DC to 20kHz (Ext) |
||||||||||||||
Peak Deviation |
DC to max frequency |
||||||||||||||
Source |
Internal / External |
||||||||||||||
PM |
|||||||||||||||
Carrier Waveforms |
Sine, Square, Triangle, Ramp |
||||||||||||||
Modulating Waveforms |
Sine, Square, Triangle, Upramp, Dnramp |
||||||||||||||
Modulation Frequency |
2mHz to 20kHz (Int) DC to 20kHz (Ext) |
||||||||||||||
Phase deviation |
0∘~360.0∘ |
||||||||||||||
Source |
Internal / External |
||||||||||||||
SUM |
|||||||||||||||
Carrier Waveforms |
Sine, Square, Triangle, Ramp |
||||||||||||||
Modulating Waveforms |
Sine, Square, Triangle, Upramp, Dnramp |
||||||||||||||
Modulation Frequency |
2mHz to 20kHz (Int) DC to 20kHz (Ext) |
||||||||||||||
SUM depth |
0%~100.0% |
||||||||||||||
Source |
Internal / External |
||||||||||||||
PWM |
|||||||||||||||
Carrier Waveforms |
Sine, Square, Triangle, Ramp |
||||||||||||||
Modulating Waveforms |
Sine, Square, Triangle, Upramp, Dnramp |
||||||||||||||
Modulation Frequency |
2mHz to 20kHz (Int) DC to 20kHz (Ext) |
||||||||||||||
Phase deviation |
0%~100.0% pulse width |
||||||||||||||
Source |
Internal / External |
||||||||||||||
FSK |
|||||||||||||||
Carrier Waveforms |
Sine, Square, Triangle, Ramp, Pulse |
||||||||||||||
Modulating Waveforms |
50% duty cycle square |
||||||||||||||
Internal Frequency |
2 mHz to 1 MHz |
||||||||||||||
Frequency Range |
1μHz to max frequency |
||||||||||||||
Source |
Internal / External |
||||||||||||||
Sweep |
|||||||||||||||
Waveforms |
Sine, Square, Triangle, Ramp |
||||||||||||||
Type |
Linear or Logarithmic |
||||||||||||||
Sweep direction |
Sweep up or sweep down |
||||||||||||||
Start/Stop Freq |
1uHz to max frquency |
||||||||||||||
Sweep Time |
1ms to 500s |
||||||||||||||
Source |
Internal / External |
||||||||||||||
Trigger |
Single, External, Internal. |
||||||||||||||
Marker |
Marker signal on falling edge (programmable) |
||||||||||||||
Source |
Internal / External |
||||||||||||||
Burst |
|||||||||||||||
Waveforms |
Sine, Square, Triangle, Ramp |
||||||||||||||
Frequency |
1uHz~Max Frequency |
||||||||||||||
Pulse count |
1~1000000 Cycles or intfinite |
||||||||||||||
Start/ Stop Phase |
-360.0∘~+360.0∘ |
||||||||||||||
Internal Frequency |
1 us~500 s |
||||||||||||||
Gate source |
External Trigger |
||||||||||||||
Trigger Source |
Single, External, Internal. |
||||||||||||||
Trigger Delay |
NCycle, Infinite |
0s~100 s |
|||||||||||||
External Trigger Input |
|||||||||||||||
Type |
For FSK, Burst, Sweep |
||||||||||||||
Input Level |
TTL Compatibility |
||||||||||||||
Slope |
Rising or Falling(Selectable) |
||||||||||||||
Pulse Width |
>100ns |
||||||||||||||
Input Impedance |
10kΩ,DC coupled |
||||||||||||||
External Modulation Input |
|||||||||||||||
Type |
For AM, FM, PM,SUM,PWM |
||||||||||||||
Voltage Range |
±5V full scale |
||||||||||||||
Input Impedance |
10kΩ |
||||||||||||||
Frequency |
DC to 20kHz |
||||||||||||||
Ground Isolation |
42Vpk max |
||||||||||||||
Trigger Output |
|||||||||||||||
Type |
For FSK,Burst, Sweep |
||||||||||||||
Level |
TTL Compatible into 50Ω |
||||||||||||||
Pulse Width |
>450ns |
||||||||||||||
Maximum Rate |
1MHz |
||||||||||||||
Fan-out |
≥4 TTL Load |
||||||||||||||
Impedance |
50Ω Typical |
||||||||||||||
Frequency Counter |
|||||||||||||||
Range |
5Hz to 150MHz |
||||||||||||||
Accuracy |
Time Base accuracy±1count |
||||||||||||||
Time Base |
±20ppm (23˚C ±5˚C) |
||||||||||||||
Resolution |
The maximum resolution is: 100nHz for 1Hz, 0.1Hz for 100MHz. |
||||||||||||||
Input Impedance |
1kΩ/1pf |
||||||||||||||
Sensitivity |
35mVrms ~ 30Vms (5Hz to 150MHz) |
||||||||||||||
Ground Isolation |
42Vpk max |
||||||||||||||
Dual Channel Function(CH1/CH2) |
|||||||||||||||
Phase |
-180∘ ~180∘ |
||||||||||||||
Synchronize phase |
|||||||||||||||
Track |
CH2=CH1 |
||||||||||||||
Coupling |
Frequency(Ratio or Difference) |
||||||||||||||
Amplitude & DC Offset |
|||||||||||||||
Dsolink |
√ |
||||||||||||||
Save/Recall |
10 Groups of Setting Memories |
||||||||||||||
Interface |
LAN, USB |
||||||||||||||
Display |
4.3’’ TFT LCD 480 × 3 (RGB) × 272 |
||||||||||||||
General Specifications |
|||||||||||||||
Power Source |
AC100~240V, 50~60Hz or AC100~120V, AC220~240V, 50~60Hz |
||||||||||||||
Power Consumption |
30W or 80W(With power amplifier) |
||||||||||||||
Operating Environment |
Temperature to satisfy the specification : 18 ~ 28˚C Operating temperature : 0 ~ 40˚C Relative Humidity: ≤ 80%, 0 ~ 40˚C ≤ 70%, 35 ~ 40˚C Installation category: CAT II |
||||||||||||||
Operating Altitude |
2000 Meters |
||||||||||||||
Pollution Degree |
IEC 61010 degree 2, Indoor use |
||||||||||||||
Storage Temperature |
-10~70˚C, Humidity: ≤70% |
||||||||||||||
Dimensions (WxHxD) |
266(W) x 107(H) x 293(D) mm |
||||||||||||||
Weight |
Approx. 2.5kg |
||||||||||||||
Safety designed to |
EN61010-1 |
||||||||||||||
Accessories |
GTL-101× 1(MFG-21XX) GTL-101× 2(MFG-22XX) |
||||||||||||||
Quick Start Guide ×1 |
(1). A total of ten waveforms can be stored. (Every waveform can be composed of a maximum of 16k points.)
(2). Add 1/10th of output amplitude and offset specification per ºC for operation outside of 0ºC to 28ºC range (1-year specification).
(3). DC offset set to zero,
(4). Jitter specification for RF Generator: 20ppm +5ns.
(5).Only Pulse channel support
