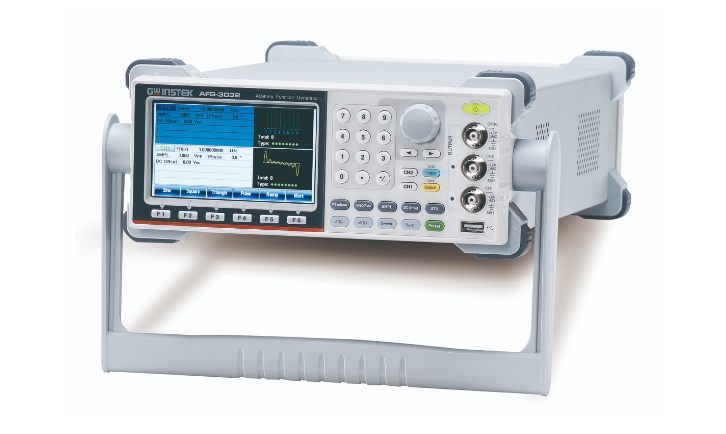

GW Instek - AFG-303x & AFG-302x

Features

1uHz to 20 or 30MHz, 16-bit resolution with 1 mVpp to 10 Vpp amplitude. 1 or 2 channel (s)
250 MSa/s sampling rate for higher time resolution arbitrary waveforms
8M Points/channel standard waveform memory
Input/output signal ground independent of housing and signal ground between channels also insulated.
Synchronized phase operates up to 6 units and 12 channels
Pulse waveform parameters can be set independently for more precise timing
Harmonic signal generator
Dual channel models support SUM modulation, coupling, tracking, and phase functions
Built-in AM/FM/PM/FSK/PWM/SUM modulation, sweep and burst functions
Provide USB/LAN/GPIB (optional) instrument control interface

Details
Specifications

GW Instek rolls out the new AFG-3000 series arbitrary function generators, including 20MHz/30MHz single channel and dual channel models, designed to meet industry, scientific research, and education applications. In the design of isolated output, all output channels are earth ground isolation, which is suitable for test applications of floating circuit. For instance, connecting an AFG-3000 with a power supply’s DC voltage, the maximum AC-DC cascaded output reaches +42V or -42V. Each channel of dual channel models can be operated independently or multi units can simultaneously function without taking grounding reference into consideration. Applications are, for instance, the ignition control or transmission device of automotive electronics. The series features sample rate of 250MSa/s, 16-bit resolution, and 8M point memory depth for arbitrary waveform generation. Users not only can save the edited waveforms to the memory to build arbitrary waveforms, but also rebuild waveforms by the AFG-3000’s built-in DSOLink function with a GW Instek digital storage oscilloscope.

The AFG-3000 series supports synchronized phase for multi channel operation up to 6 units and 12 channels. A reference input connector is available allowing an external 10 MHz time base to synchronize the internal clock and elevate the frequency output accuracy. The series supports frequency sweep and amplitude sweep that can also integrate other functions, including linear/logarithm, one-way (saw tooth)/two-way (triangle), continuous/single trigger/gated trigger to meet various application requirements by applying different sweep methods. Frequency sweep tests the frequency response of electronic components such as filter and low frequency amplifier. Amplitude sweep simulates vibration tests (requires a vibration tester), and it also conducts aging tests of various materials and linearity tests of low frequency amplifier.

The main features of the AFG-3000 series include output amplitude from 1mVpp to 10Vpp (connected with a 50 ohm load); frequency range from 1uHz to 20MHz or 30MHz; 1uHz frequency resolution; and built-in sine, square, pulse, triangle, ramp, DC voltage, harmonic and noise. The waveform width, rise edge time and fall edge time of pulse waveform can be adjusted flexibly. Pulse waveform, with duty cycle from 0.017% to 99.983%, can be applied as trigger signals. Users can conduct arbitrary editing via 65 built-in function waveforms. The series supports AM/FM/PM/FSK/PWM modulation, frequency sweep, amplitude sweep and burst to satisfy industrial application requirements. Dual channel models provide SUM modulation, coupling, tracking, and phase to meet the test requirements of differential signal, phase control and amplifier distortion. Built-in 8th harmonic signal generator simulates harmonic signal of switching power supplies and it also tests EMI power filter characteristics. The AFG-3000 series provides free arbitrary waveform editing software (AWES) for users to quickly edit waveforms from the built-in diagrams so as to execute measurements.

The AFG-3000 series comes with four models. Model number and channel (s) are listed as follows:

Model	AFG-3032	AFG-3031	AFG-3022	AFG-3021
Frequency range	1 uHz to 30MHz	1 uHz to 30MHz	1 uHz to 20MHz	1 uHz to 20MHz
Channel	2	1	2	1

AFG-303x & AFG-302x Specifications

The specifications apply when the AFG-303x & AFG-302x is powered on for at least 30 minutes under +20°C~+30°C.

		AFG-3031		AFG-3032	AFG-3021		AFG-3022
Channels		1		2	1		2
Features
I/O signal ground for the instrument chassis		Isolation
Connector shells for channel output(s), Sync output, 10MHz REF Input, Mod Input and Mod output are isolated from the instrument’s chassis. Maximum allowable voltage on isolated connector shells is ±42 Vpk. (DC + AC Peak)
Each of the signal ground of CH1 & CH2		-		Isolated	-		Isolated
Standard Waveforms		Sine, Square, Triangle, Ramp, Pulse, Noise, Harmonic
Arbitrary Waveforms
Sample Rate		250 MSa/s
Repetition Rate		125MHz
Waveform Length		8M points
Amplitude Resolution		16 bits
Non-Volatile Memory		Ten 8M waveforms (1)
User define Output Section		Any section from 2 to 8M points
Trigger		External
Built-in Arbitrary Waveforms		Sine, Square, Ramp, Sinc,Pulse, DC, Sin(x)/x, Exponential Rise, Exponential Fall, Negative Ramp, Absatan, Havercosine, Sinever, Abssin, Haversine, Stair_down, Abssinehalf, N_pulse, Stair_UD, Ampalt, Negramp, Stair_up, Attalt, Rectpuls1, Stepresp, Diric_even, Roundhalf, Trapezia, Diric_odd, Sawtoot, Tripuls1, Gauspuls1, Sinetra, Dlorentz, ln, Sqrt, Exporise, Lorentz, Xsquare, Expofall, Gauss, Since, Arccos, Arctan, Sech, Arccot, Arctanh, Sinh, Arccsc, Cosh, Tan, Arcsec, Cot, Tanh, Arcsin, Csc, Arcsinh, Sec, Barthannwin, Chebwin, Kaiser, Bartlett, Flattopwin, Triang, Blackman, Hamming, Tukeywin, Bohmanwin, Hann
Frequency Characteristics
	Sine / Square	1uHz to 30MHz			1uHz to 20MHz
	Pulse	1uHz to 25MHz			1uHz to 20MHz
	Triangle / Ramp	1uHz to 1MHz
Resolution		1uHz
Accuracy	Stability	±1 ppm 0 to 50℃
		±0.3 ppm 18 to 28℃
	Aging	±1 ppm, per 1 year
	Tolerance	≦ 1 uHz
Output Characteristics (2)
Amplitude	Range	1 mVpp to 10 Vpp (into 50Ω) 2 mVpp to 20 Vpp (into open-circuit)
	Accuracy	± 1% of setting ±1 mVpp
		(at 1 kHz / into 50Ω without DC offset)
	Resolution	0.1 mV or 4 digits
	Flatness	0.1dB 10 MHz
		0.2 dB 10 MHz to 30 MHz
		(sinewave relative to 1 kHz/into 50Ω)
	Units	Vpp, Vrms, dBm,
Offset	Range	±5 Vpk ac +dc (into 50Ω)
		±10Vpk ac +dc (into open circuit)
	Accuracy	1% of setting + 2 mV+ 0.5% of amplitude
Waveform Output	Impedance	50Ω typical (fixed)
		> 10MΩ (output disabled)
	Protection	Short-circuit protected
		Overload relay automatically disables main output
SYNC Output	Level	TTL-compatible into>1kΩ		-	TTL-compatible into>1kΩ		-
	Impedance	50Ω nominal
Sine wave Characteristics
Harmonic Distortion(5)		–60 dBc DC～1 MHz, Ampl＜3 Vpp
		–55 dBc DC～1 MHz, Ampl＞3 Vpp
		–45 dBc 1MHz～5 MHz, Ampl＞3 Vpp
		–30 dBc 5MHz～30 MHz, Ampl＞3 Vpp
Total Harmonic Distortion		0.2%+0.1mVrms
		DC to 20 kHz
Spurious (non-harmonic)(5)		–60 dBc DC～1 MHz
		–50 dBc 1MHz～20MHz
		–50 dBc+ 6 dBc/octave 1MHz～30MHz (AFG-3031/3032)
Phase Noise		＜-110dBc/Hz typical,15 kHz offset, fc = 10MHz,
Square wave Characteristics
Rise/Fall Time		8 ns (3)
Overshoot		5%
Asymmetry		1% of period+1 ns
Variable Duty Cycle		20.0% to 80.0%,≦ 25 MHz 40.0% to 60.0%,25 to 30MHz			20.0% to 80.0% , ≦ 20 MHz
Jitter		0.01%+525ps ＜ 2 MHz 0.1%+75ps ＞ 2 MHz
Ramp Characteristics
Linearity		＜ 0.1% of peak output
Variable Symmetry		0% to 100% (0.1% resolution)
Pulse Characteristics
Pulse Width		20ns to 999,830s
		Period ≧ Width-0.625 [(Rise Time-0.6ns)+(Fall Time-0.6ns)]
Duty setting range		0.017% to 99.983%
Period		40ns to 1,000,000s
Rise Time and Fall Time		9.32 ns to 799,900s (0.01ns or 3 digit resolution)
Resolution		0.0001%
Overshoot		5%
Jitter		100 ppm + 50 ps
Harmonic
Harmonic order		≦8
Harmonic Type		Even, Odd, All, User Amplitude and Phase can be set for all harmonics
AM
Carrier Waveforms		Sine, Square, Triangle, Ramp, Pulse, Arb
Modulating Waveforms		Sine, Square, Triangle, Up/Dn Ramp
Modulating Frequency		2 mHz to 20 kHz
Depth		0% to 120.0%
Source		Internal / External
FM
Carrier Waveforms		Sine, Square, Triangle, Ramp
Modulating Waveforms		Sine, Square, Triangle, Up/Dn Ramp
Modulating Frequency		2 mHz to 20 kHz
Peak Deviation		DC to 30 MHz (1uHz resolution)			DC to 20 MHz (1uHz resolution)
Source		Internal / External
PM
Carrier Waveforms		Sine, Triangle, Ramp
Modulating Waveforms		Sine, Square, Triangle, Up/Dn Ramp
Phase Deviation		0° to 360°, 0.1° resolution
Modulating Frequency		2 mHz to 20 kHz
Source		Internal
PWM
Carrier Waveforms		Square
Modulating Waveforms		Sine, Square, Triangle, Up/Dn Ramp
Modulating Frequency		2 mHz to 20 kHz
Deviation		0% ～ 100.0% of pulse width, 0.1% resolution
Source		Internal / External
Additive modulation (Sum)
Carrier Waveforms		Sine, Triangle, Ramp, Pulse, Noise
Modulating Waveforms		Sine, Square, Triangle, Up/Dn Ramp
Ratio		0% to 100% of carrier amplitude, 0.01% resolution
Modulating Frequency		2 mHz to 20 kHz
Source		Internal / External
FSK
Carrier Waveforms		Sine, Square, Triangle, Ramp
Modulating Waveforms		50% duty cycle square
Internal Rate		2 mHz to 1 MHz
Frequency Range		DC to 30 MHz	DC to 30MHz		DC to 20MHz	DC to 20MHz
Source		Internal / External
SWEEP
Waveforms		Frequency Sweep: Sine, Square, Triangle, Ramp Amplitude Sweep: Sine, Square, Triangle, Ramp, Pulse, Noise, ARB
Type		Frequency, Amplitude
Functions		Linear or Logarithmic
Direction		Up or Down
Start F / Stop FREQ		Any frequency within the waveform's range
Sweep Time		1 ms to 500 s (1 ms resolution)
Trigger Mode		Single, External, Internal
Trigger Source		Internal / External
BURST
Waveforms		Sine, Square, Triangle, Ramp, Pulse, Noise
Frequency		1 uHz to 30 MHz (4)			1uHz to 20MHz
Burst Count		1 to 1,000,000 cycles or Infinite
Start / Stop Phase		-360.0∘to +360.0∘ (0.1° resolution)
Internal Period		1 us to 500 s
Gate Source		External Trigger (pulse waveforms can only be used in gate mode)
Trigger Source		Single, External or Internal Rate
Trigger Delay		N-Cycle, Infinite: 0us to 100s (1us resolution)
External Modulation Input
Type		AM, FM, PWM
Voltage Range		± 5V full scale
Input Impedance		10kΩ
Frequency		DC to 20 kHz
Modulation Output		AFG-3031/3021 only
Type		AM, FM, PM, PWM, SUM, Sweep
Amplitude Range		≧ 1Vpp
Impedance		> 10kΩ typical
External Trigger Input
Type		For FSK, Burst, Sweep, N Cycle ARB
Input Level		TTL Compatibility
Slope		Rising or Falling (Selectable)
Pulse Width		> 100 ns
Input rate		DC to 1 MHz
Input Impedance		10kΩ,DC coupled
Latency	Sweep	10 us (typical)
	Burst	100 ns (typical)
Jitter	Sweep	2.5 us
	Burst	1 ns; except pulse,300 ps
10MHz Reference Output
Output voltage		1 Vp-p / 50 Ω square wave
Output Impedance		50 Ω, AC coupled
Output Frequency		10MHz
10MHz Reference Input
Input Voltage		0.5Vpp to 5Vpp
Input Impedance		1k Ω, unbalanced, AC coupled
Input Frequency		10MHz ± 10Hz
Waveform		Sine or Square (50±5% duty)
Ground Isolation		42Vpk max.
External-Sync
Phase Delay (max.)		Series Connection: 39+(N-2)39 ±25nS Parallel connection: (N-1)6 ±25nS (where N=number of connected units)
Maximum number of connected units		Series Connection: 4 Parallel Connection: 6
Applicable Functions		Sine, Square, Triangle, Pulse, Ramp, Harmonic, MOD, Sweep, Burst
Store/Recall		10 Groups of Setting Memories
Interface		GPIB(Optional), LAN, USB
Display		4.3 inch TFT LCD, 480 × 3 (RGB) × 272
General Specifications
Power Source		AC 100～240V , 50～60Hz
Power Consumption		50VA	85VA		50VA	85VA
Operating Environment		Temperature to satisfy the specification : 18 ~ 28∘C
		Operating temperature : 0 ~ 40∘C
		Relative Humidity:
		≤ 80%, 0 ~ 40°C
		≤ 70%, 35 ~ 40°C
		Installation category： CAT Ⅱ
Operating Altitude		2000 meters
Pollution Degree		IEC 61010 Degree 2, Indoor Use
Storage Temperature		-10 ~ 70∘C, Humidity: ≤70%
Dimensions (WxHxD)		Bench Top : 265 (W) x 107 (H) x 374 (D)
Weight		Approx. 4kg
Safety Designed to		EN61010-1
EMC Tested to		IEC-61326, EN 55011
Accessories		Test cable(GTL-110×1 for AFG-3031/AFG-3021, GTL-110×2 for AFG-3032/AFG-3022), User Manual Compact Disk × 1, Quick Start Guide × 1, Power cord × 1
(1). A total of ten waveforms can be stored. (Every waveform can composed of 8M points maximum.)
(2). Add 1/10th of output amplitude and offset specification per ∘C for operation outside of 0∘C to 28∘C range (1-year specification).
(3). Edge time decreased at higher frequency.
(4). Sine and square waveforms above 25 MHz are allowed only with an "Infinite" count.
(5). Harmonic distortion and Spurious noise at low amplitudes is limited by a -70 dBm floor.
