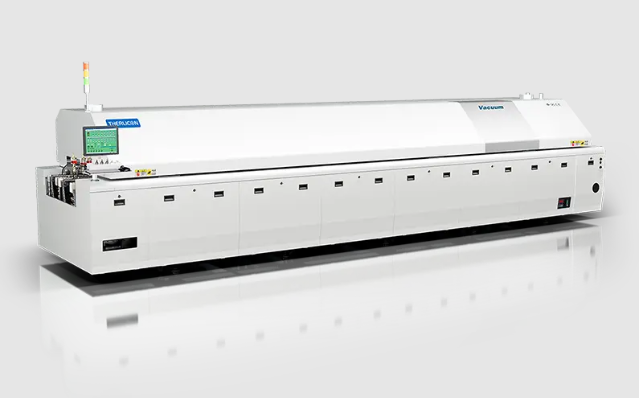

JT - TRV Series Vacuum Assisted Reflow Oven

Products

Independent temperature control zone, suitable for different temperature profile;
Solve the problem of bubble & void, <1% void area can be achieved;
High efficient vacuum pump unit equipped for fast down time;
3- section conveyor : Heating zone ,vacuum unit and cooling zone , adjustable individually;
High production throughput, cycle time 40-60sec, average;
Equipped with high efficient flux collection system.
High efficiency、No voids、 Low maintenance cost: Equipped with vacuum unit to solve the problem of void, bubble, etc. Voids area can reach < 1% by the vacuum pressure 10-5mbar.
High accurate vacuum level and temperature profile: Temperature of each zone can be adjusted individually. Pressure under 10mbar still can meet TI≤90S, TP≤240°C. Infrared heating equipped in vacuum unit to meet high throughput settings.
