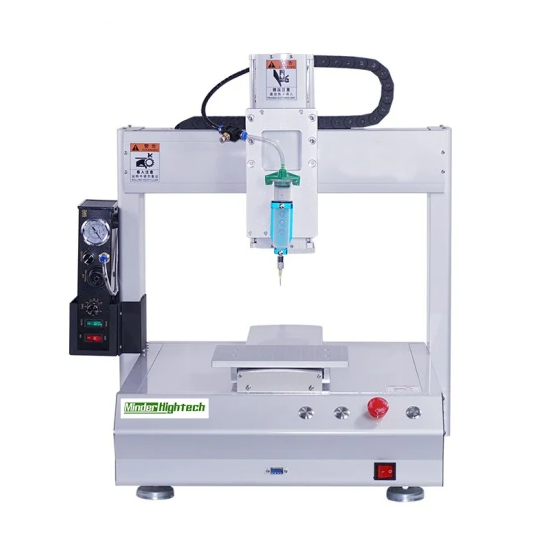

The 3-axis Auto Glue Dispensing Machine is designed for automated assembly processes, capable of dispensing glue on one part and bonding it with another. This increases precision, resulting in improved product quality.
| Working Range | X380 / Y380 / Z100 mm |
| Max Payload | Y: 7 kg / Z: 5 kg |
| Max Travel Speed | X/Y: 500 mm/s, Z: 150 mm/s |
| Transport System | Stepping motor, belt |
| Repeat Accuracy | ±0.008 mm |
| Storage | 999 setup programs (each program with up to 65,535 points) |
| Operating System | LCD, teach pendant (2020 user-friendly version) |
| Dispensing Patterns | Spot to spot, continuous, arc, 3-dimensional |
| Signal | Standard 1 input, 4 output (expandable to 10 input, 10 output) |
| Power Supply | AC 220V 50/60Hz, 1 kW |
| Working Environment | Humidity 20-90%, Temperature 0-40℃ |
| Weight | Approx. 35 kg |
| Dimensions | L490 x W528 x H680 mm |
