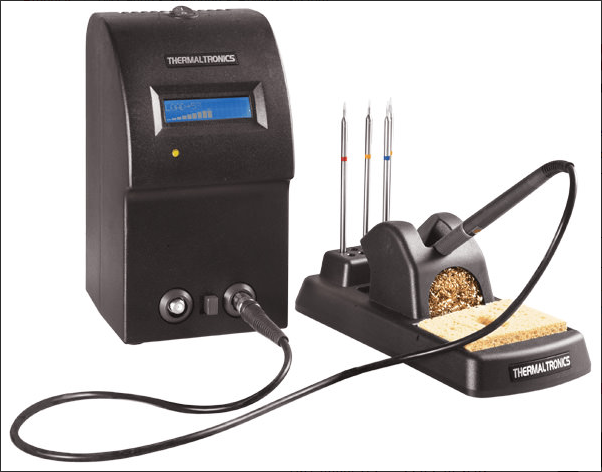

The TMT-9000S is based on Curie Heat Technology which responds to the thermal demands of each solder joint by adjusting the power instantaneously, thereby meeting the exact requirements of the substrate component and solder material.
| TMT-9000S SPECIFICATIONS | ||
| Input Line Voltage: | TMT-9000PS-1 | 100-110 VAC |
| TMT-9000PS-2 | 220-240 VAC | |
| Tip to Ground Potential: | 2mV, true RMS 50-500Hz | |
| Tip to Ground Resistance: | 2 Ohms DC | |
| Idle Temperature Stability: | +/- 1.1°C (2°F) | |
| Ambient Operating Temperature: | 10-40°C (50°F -104°F) | |
| Maximum Enclosure Temperature: | 50°C (122°F) | |
| Fuse: | TMT-9000PS-1 | 125V 1A |
| TMT-9000PS-2 | 250V 0.5A | |
| Output Power (Maximum): | 40 Watts | |
| Output Frequency: | 13.56 MHz | |
| Size (W x H x D): | 212.4mm x 118mm x 132mm | |
| Weight: | 3.47 KG | |
| LCD display: | 60.0mm x 16.0mm | |
| Input Line Frequency: | 50/60 Hz | |
| PACKING LIST | ||
| TMT-9000PS | Power Supply | |
| SHH-1 | Soldering Handpiece Holder | |
| SHP-1 | Soldering Handpiece | |
| RMP-1 | Tip Removal Pad | |
| SG-1-HRB | Heat Resistant Grip | |
| SG-1-GR | Handpiece Grip Green | |
| SG-1-GY | Handpiece Grip Gray | |
| BC-1 | Brass Curls | |
| SPG-1 | Sulphide Free Sponge | |
| M7CH176 | Soldering Tip Cartridge | |
