icoat3

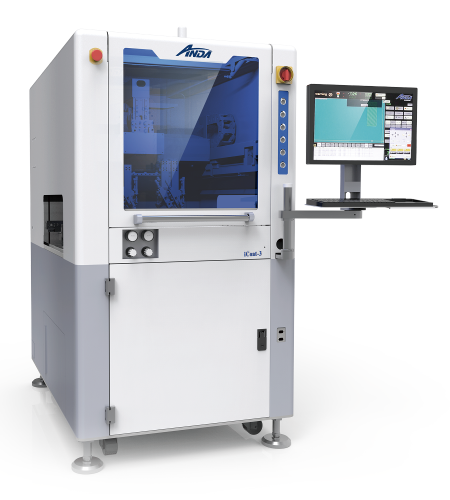

ANDA’s iCoat-3 is a high-speed precision selective conformal coating machine that is designed to strike a balance between cost and performance. Perfect for automating high volume/throughput or high mix low volume (HMLV) coating processes which do not require valve rotation and 35° tilt (see iCoat-5 ...Read more
ANDA - Precision Coating Machine iCoat3


Downloads iCoat3 Brochure
  • Details
  • Specifications

ANDA’s iCoat-3 is a high-speed precision selective conformal coating machine that is designed to strike a balance between cost and performance. Perfect for automating high volume/throughput or high mix low volume (HMLV) coating processes which do not require valve rotation and 35° tilt (see iCoat-5 Series). Suitable for panelized or palletized printed circuit board assemblies (PCBAs) and large area coating applications.

  • Running accuracy of ± 0.02 mm (20 µm) (± 0.0007ʺ)
  • Three axes of movement (X,Y,Z)
  • Supports up to four selective conformal coating valves in a variety of different nozzle arrangements including dual or quad valve configurations

Motion System

Gantry

Servo motors, ball screw drive

Gantry Axes

X,Y,Z

X-Travel

450 mm (Standard), 580 mm (Optional)

Y-Travel

450 mm (Standard), 580 mm (Optional)

Z-Travel

100 mm

XY Maximum Speed

800 mm/sec

XY Acceleration

0.8 g with smooth control

XYZ Repeatability

± 0.02 mm (20 µm) (± 0.0007")

Board Handling

Standard Work Area

X 450 × Y 450 × Z 100 mm
(X 17.71" × Y 17.71" × Z 3.93")

Large Work Area (Optional)

X 580 × Y 580 × Z 100 mm
(X 22.83" × Y 22.83" × Z 3.93")

Maximum Components Height

± 90 mm (± 3.54") from PCB

PCB Edge Clearance

≥ 5 mm (≥ 0.19")

Minimum Conveyor Width

50 mm (1.95")

Max Standard Conveyor Width

450 mm (18.11")

Max Large Conveyor Width (Optional)

580 mm (22.83")

Process Flow (bidirectional)

L to R (Standard), R to L (Optional)

Chain Conveyor Weight Limit

4 kg (9 lbs) [Standard], 10 kg (22 lbs) [Optional]

Conveyor Motor Power

DC 24 V 69 W × 2

Conveyor Speed (XY)

0.5 – 5 m/min (1.6 – 16.4 ft/min)

Conveyor Height

900 ± 20 mm
(35.43" ± 0.79")

Conveyor Width Adjustment

Automatic (motorized)

Operation Configuration

Valve Configuration (Standard)

Dual valves in a row (fixed width)

Valve Configurations (Optional)

Quad valves; dual row (adjustable width)

Dispense Valve Widths

0.2 – 2 mm (0.0078" – 0.078")

Spray Valve Widths

1.6 – 30 mm (0.06" – 1.2")

Maximum Speed

800 mm/s

Repeatability

± 0.02 mm (20 µm) (± 0.0007")

Facility

Footprint

L 900 x W 1300 x H 1675 mm
(L 35.43" x W 51.18" x H 65.94")

Weight

570 kg (1257 lbs)

Air supply (dry, unlubricated air)

0.4 MPa (60 psi, 4 Bar)

Exhaust Requirement

15 m³/min (500 CFM)

Power

AC 220 V 50/60 Hz

Rated Power

2.2 kW

Standards Compliance

SMEMA, IPC-CFX, CE

Interface

Computer

PC + KMM

Software

Anda iCoat UI

OS

Windows 10

Programming

File transfer, Onboard keyboard/mouse
