xrh111eco
The main focus of this compact X-ray cabinet for manual real-time inspection are sample parts. The goal is to achieve the same brilliant image quality for a budget price by reducing the comfort items and advanced features of the XRH111. This leads to the best cost-benefit ratio for our customers on ...Read more

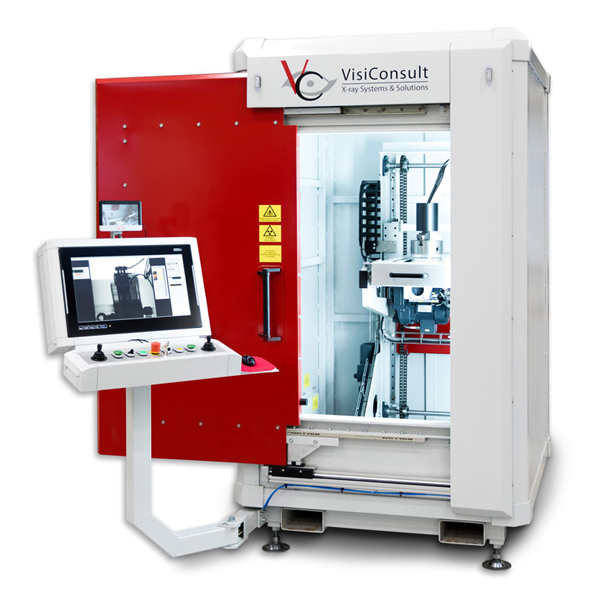

VisiConsult - XRH111 ECO

Features:

  • Designed for cost-sensitive applications
  • Compact layout and small footprint
  • Optimized for visual X-ray inspection
  • Full image quality and software features
  • Robust industrial design with long lifetime
  • Optimized for visual X-ray inspection
  • Easy loading trough extendable drawer
  • Highly mobile and fast setup time
  • Developed for the automotive industry
  • Four motor driven axis and manual magnification
  • Intuitive operation for maximum eficiency
  • Extensive archiving options including DICONDE
  • Connection values: 3N PE, 400/230 V, 50/60 Hz, 6 kW
  • Ambient conditions: Ambient +10° to +35°C



  • Details
  • Specifications

The main focus of this compact X-ray cabinet for manual real-time inspection are sample parts. The goal is to achieve the same brilliant image quality for a budget price by reducing the comfort items and advanced features of the XRH111. This leads to the best cost-benefit ratio for our customers on the market.

X-ray inspection is a necessary requirement to meet modern day production standards. For many companies in cost-sensitive markets the investment into a cabinet or inspection services is a major cost factor. VisiConsult developed the XRH111 ECO as a budget system that still offers cutting edge image enhancement. The basic idea is to have a cabinet without unnecessary comfort features to reduce investment costs without setbacks at the image quality. Why paying for something that is not needed? In case advanced inspection tools like ADR or CT are needed, the normal XRH111 is the perfect upgrade.

The XRH111 ECO is a X-ray cabinet to test all kinds of parts up to a diameter of 400mm and a height of 600 mm that do not exceed 25kg. Depending on the job-requirements the system is available with 160kV, 225kV and even micro-focus. The cabinet has a footprint of 1650 mm x 1450 mm x 2300 mm and is certified by the German TÜV, which ensures absolute safety, no X-ray leakage, fulfillment of all standards and an ergonomic operator position. All comfort items, like pneumatic door openers, can be added on demand.

Max. Part Size 400 x 600
Max. Part Weight 25
System Size 1700 x 1407 x 2290
System Weight 2800
Energy 160, 225
Horizontal Motion TX
Magnification TY 340
Focus Detector Distance FDD 1225
Focus Object Distance FOD 600-
Vertical Motion TZ 660
C-Arm Tilt RX +/- 20°
Part Rotation RZ 360° Multiturn
