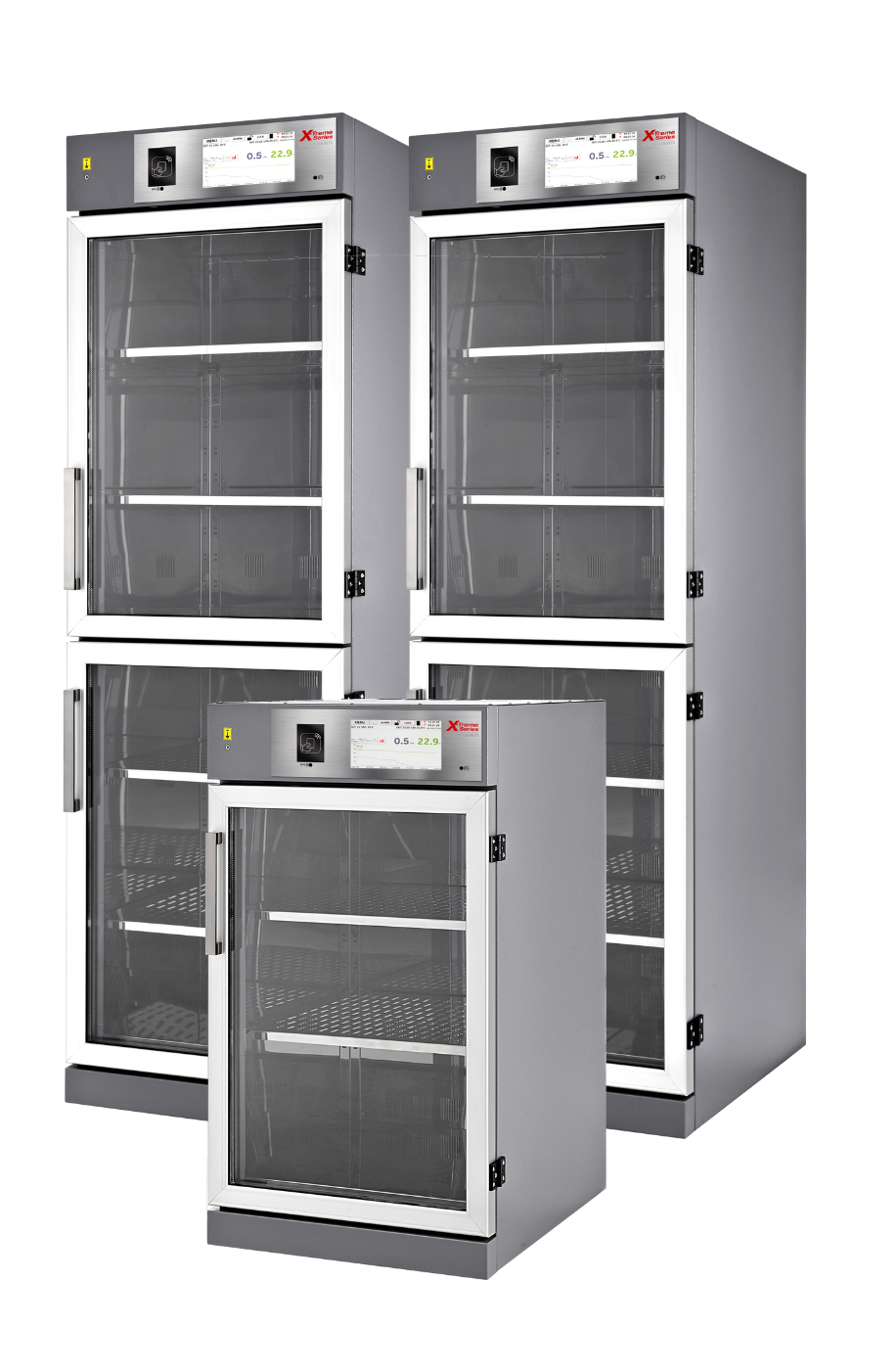

X-Treme Series Auto Dry Cabinets - XS Line (300-600-900 lt)

XS Line Auto Dry Cabinets offer between 300-900 liter volume within three different drying technologies.



What makes it differ from other dry cabinets?

  • Fastest industry recovery time: Achieves 1% RH or lower in less than 7 minutes after door closing.
  • Bake capability: Offers a range of heater options for soft-bake processes, reducing component stress and cracking.
  • Versatile configurations: Can be tailored for various applications including solder storage, metallic powder storage, and feeder/reel storage for all makes and models.
  • Optional UV curing: Provides additional functionality for specific needs.
  • Humidifier option: Allows humidity levels up to 95% for compound and organics storage.
  • Smart Light reel management: Facilitates efficient reel use and storage management.
  • Customizable features: Includes data logger, remote cabinet monitoring, RFID access door locks, and internal and external humidity sensing, along with sliding stainless steel shelving.






  • Details
  • Specifications

Auto Dry Cabinets (Dryer)
Auto dry dehumidification cabinets are the smartest solution to
overcome humidity effects on moisture sensitive devices (MSDs).
Our plug and play cabinets enable interrupted usage without
requirements of any consumables.
The Double Humidification Unit option provides regeneration free
operation in addition to 24/7 usage at desired target values.

Smart Nitrogen Cabinets (N2)
One of the earliest methods of dehumidification is use of dry gas
of Nitrogen. Nitrogen purging is an effective method especially
where oxidation is a concern as nitrogenous environments are ideal
for preventing moisture adsorption and corrosion.
Our Smart Nitrogen System adjusts the utilized gas to minimize
the consumption levels while keeping the humidity levels at the
desired values, saving your money without comprising the protection
of your materials.

Hybrid Cabinets (Dryer + N2)
X-Treme Series Auto Dry Cabinets offer complete solutions which provides you benefits of both systems.
Our hybrid cabinets which have a dryer unit installed alongside
with our Smart Nitrogen System saves cost by alternating between
nitrogen and the dryer to ensure the fastest, oxidation free storage
environment.
When reached the desired levels, Smart Nitrogen System cuts off
the gas and hands over the complete operation to the Dryer Unit.
Hybrid cabinets provides significant cost and time saving.
They are the fastest dry cabinets in the world!

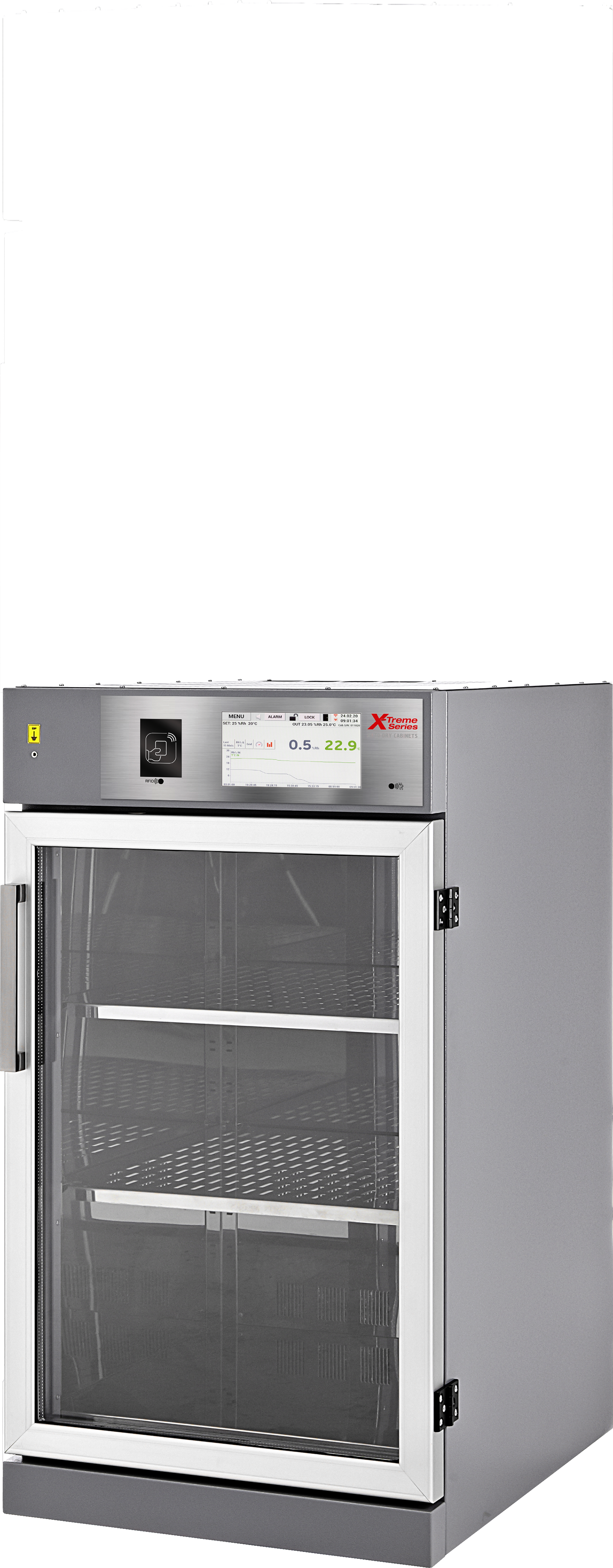

300 lt
External Dimensions (WxHxD):
606 x 1128 x 750 mm
Internal Dimensions (WxHxD):
Non Insulated: 603 x 792 x 630 mm
Insulated: 584 x 772 x 630 mm
Net Volume:
Non Insulated: 300 lt
Insulated: 285 lt
Weight (*): 90 KG
Max. Load Capacity of a Shelf: 40 KG
Height From Ground: 30 mm

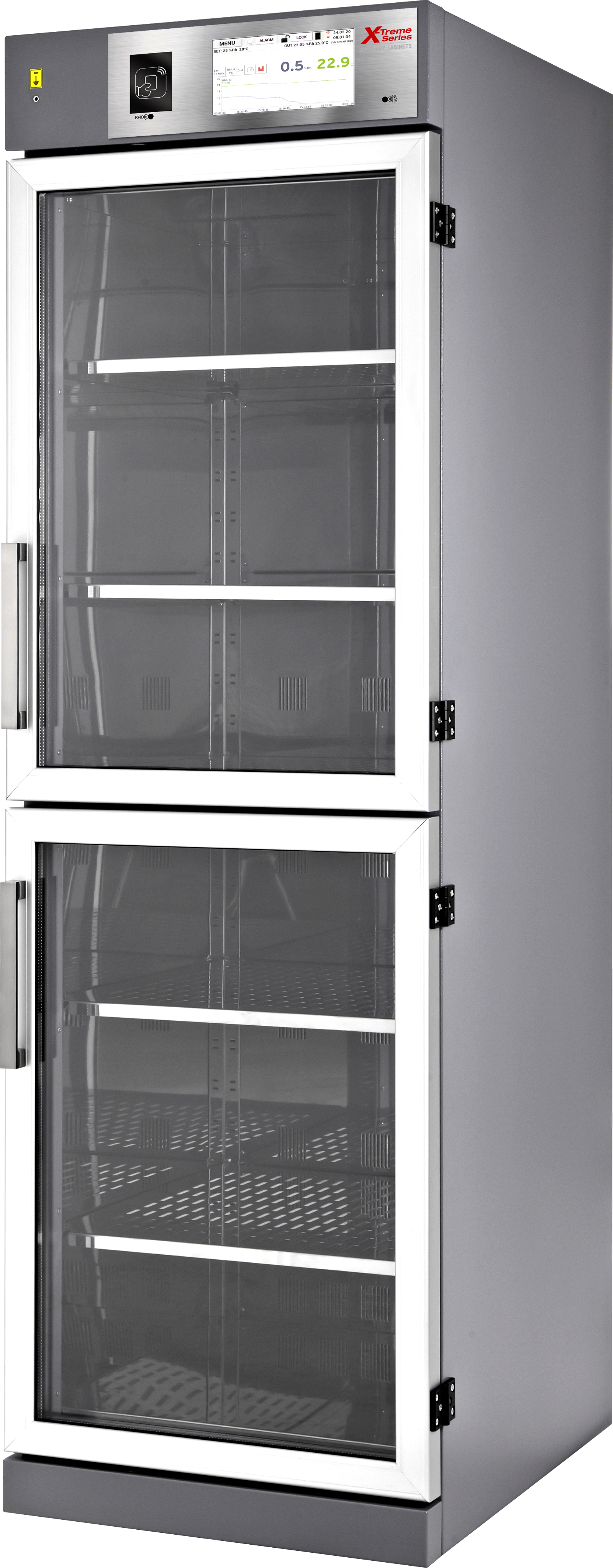

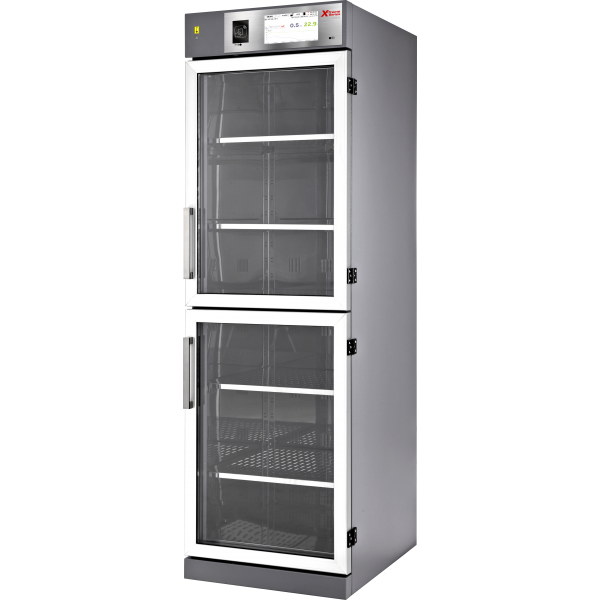

600 lt
External Dimensions (WxHxD):
606 x 1990 x 750 mm
Internal Dimensions (WxHxD):
Non Insulated: 603 x 1654 x 630 mm
Insulated: 584 x 1634 x 630 mm
Net Volume:
Non Insulated: 625 lt
Insulated: 600 lt
Weight (*): 134 KG
Max. Load Capacity of a Shelf: 40 KG
Height From Ground: 30 mm

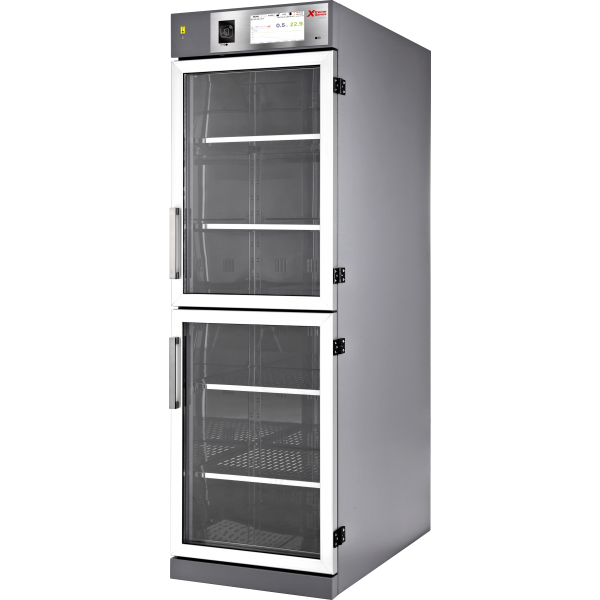

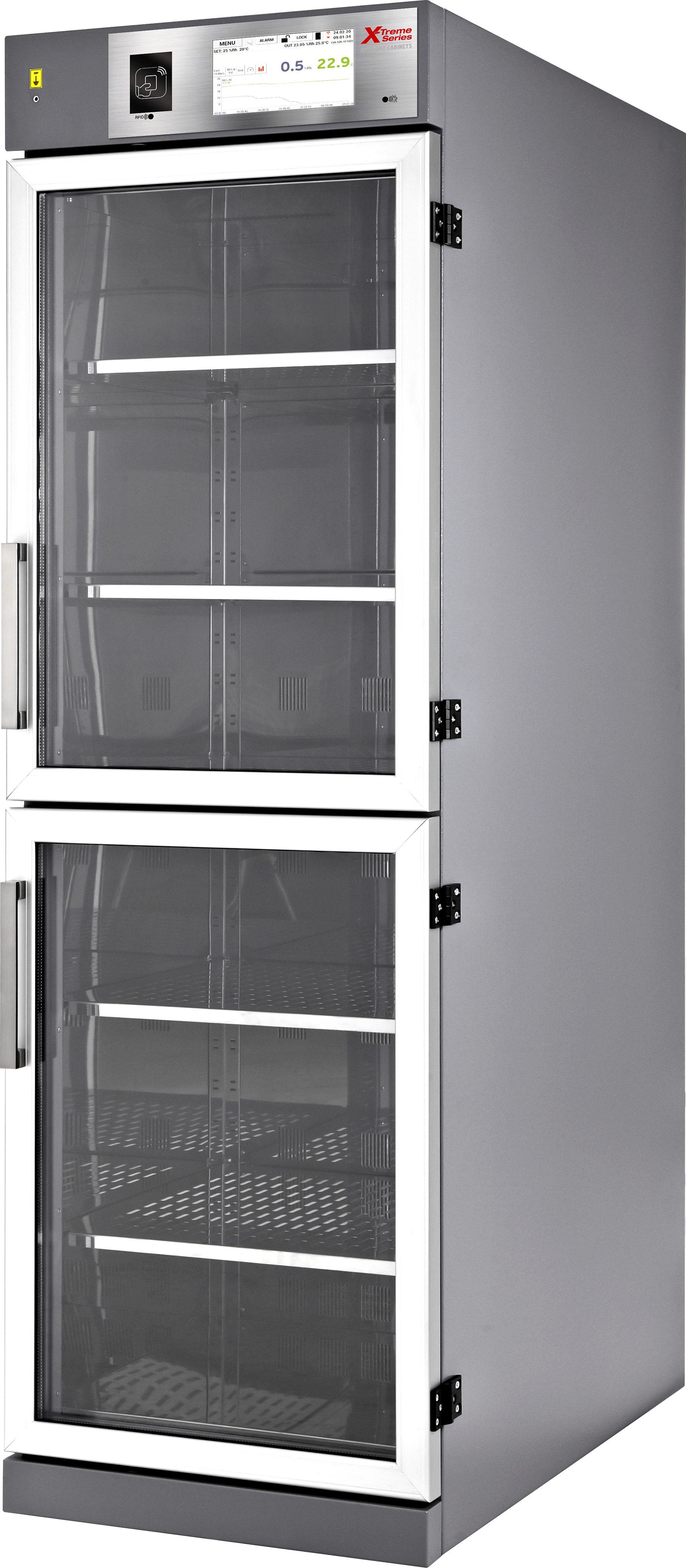

900 lt
External Dimensions (WxHxD):

606 x 1990 x 1050 mm
Internal Dimensions (WxHxD):
Non Insulated: 603 x 1654 x 930 mm
Insulated: 584 x 1634 x 930 mm
Net Volume:
Non Insulated: 925 lt
Insulated: 890 lt
Weight (*): 160 KG
Max. Load Capacity of a Shelf: 40 KG
Height From Ground: 30 mm

*Depends on Configuration
