FEATURES

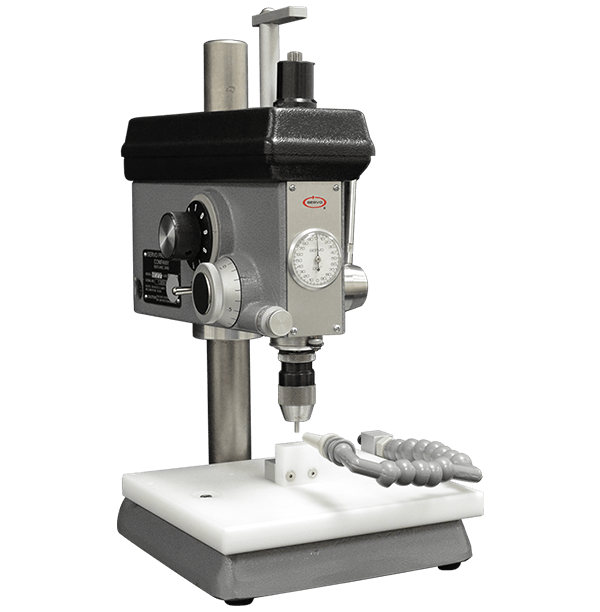

MP & MD - Manual Hole Making

• Affordable Solutions: Low-cost options for R&D and low-volume production.
• Evaluation Focus: Ideal for testing catheter punching and drilling, with future automation in mind.
• Compact Size: Benchtop design saves clean room space.
• Flexible Processing: Wide capabilities with customizable fixtures and stages.
• Advanced Cutting Technology: Uses SYNEO Hollow Core Sharpening for high-quality, flash-free holes.
• Precision: Can drill holes as small as .005”.

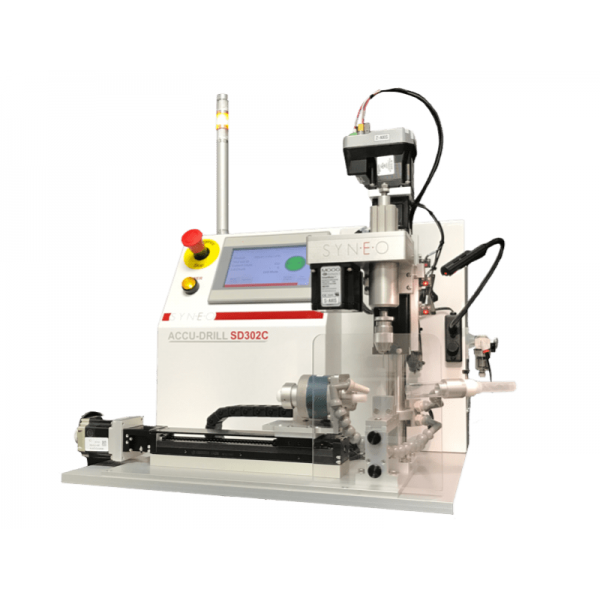

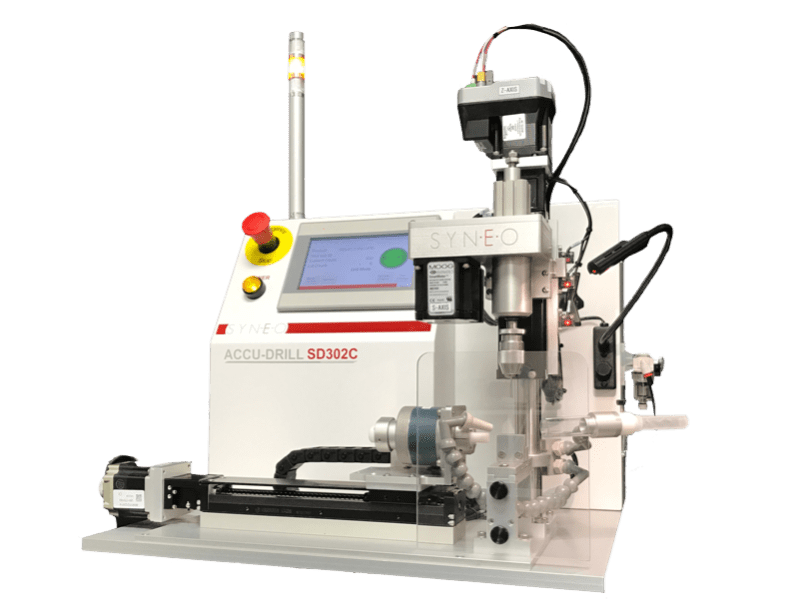

SP & SD - Automated Catheter Hole Making

• Full-color, touch-screen HMI for easy operation
• Programmable 3 & 4-axis CNC-style machine for any hole or skive pattern
• Automation options: hole-plug detection, non-contact lumen location, drill tip alignment, light curtain safety, vision-assisted positioning, and vertical slitting
• Quick-change drill and punch heads for minimal application changeovers
• Recipe-driven software with barcode integration for fast changeovers
• Programmable service and maintenance reminders
• Uses SYNEO Hollow Core Sharpening Technology for flash-free, high-quality holes as small as .005″

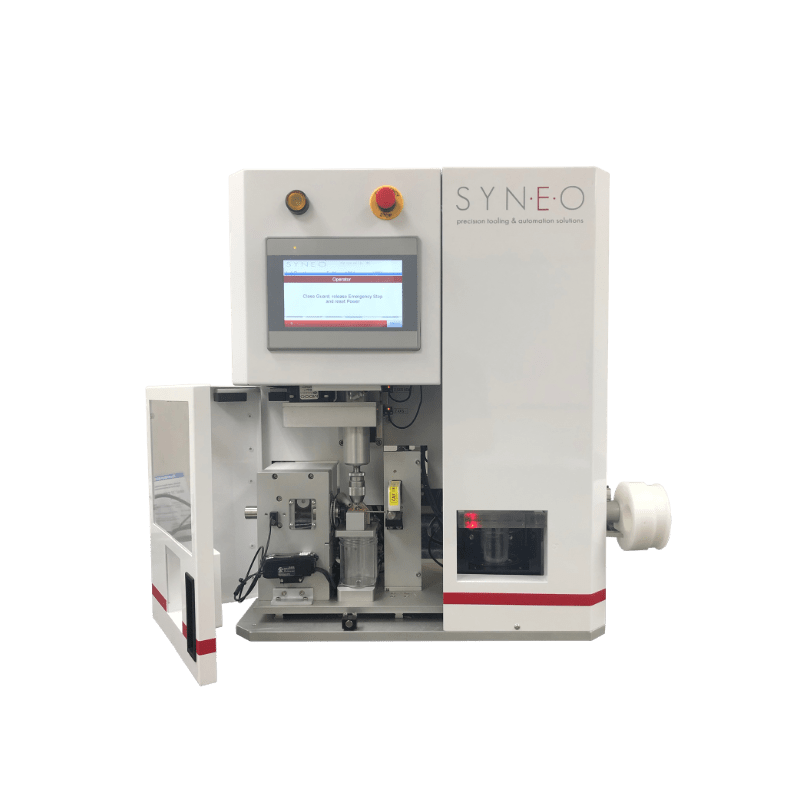

DC Integrated - Automated Catheter Drill and Cut Systems

• Full-color, touch-screen HMI for easy operation
• Consistent cut quality on braid-reinforced polymer tubing
• Rotary blade and bushing system prevents delamination and braid tear, often without mandrels
• Exceptional cut length repeatability
• Durable carbide tooling for long cutter life and high-quality cuts
• Recipe-driven software with barcode integration for quick changeovers
• Programmable service and maintenance reminders
• Seamless integration with Accu-Feed and Accu-Bin systems for enhanced automation
