ACCU-Cut machines target tight-tolerance flexible tubing and wire cutting applications, including soft, brittle and braided and non-braided material such as silicone, peek,nylon , PTFE and stainless and nitinol wire.ACCU-Cut machines ensure a prefect squre cut, free from burrs. ...Read more

Syneo - Automated Wire Cutter ACCU-Cut

FEATURES

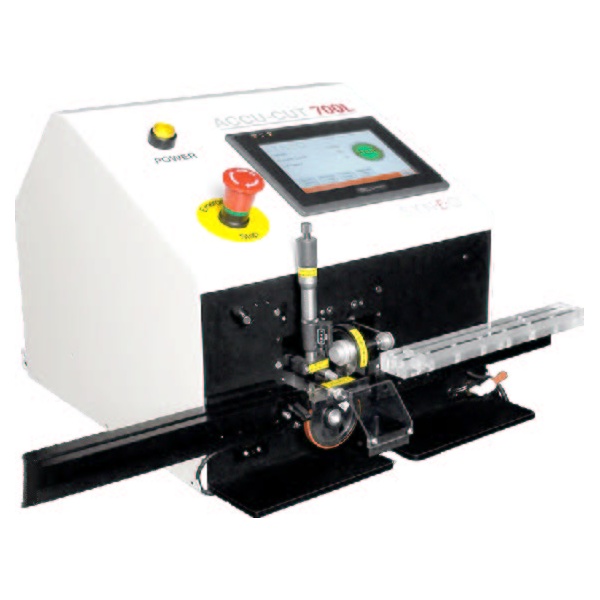

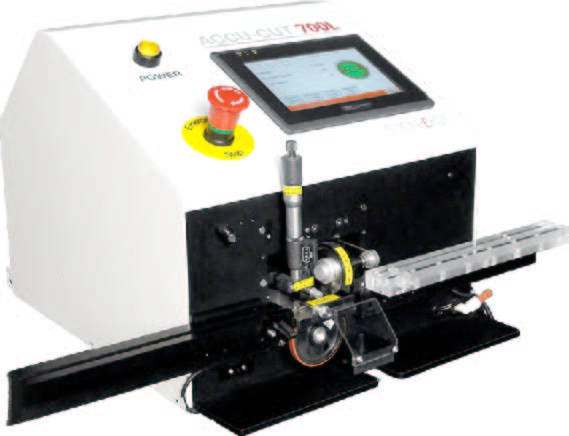

ACCU - Cut 700L

Quick setup and changeover
Low-cost, easy-to-change blade
Automatic indexer; no mandrel necessary
Ready-to-use with Accu-Feed CPF for stick-fed, fully-automated, high-speed production
Intelligent indexing system detects and prevents jam.

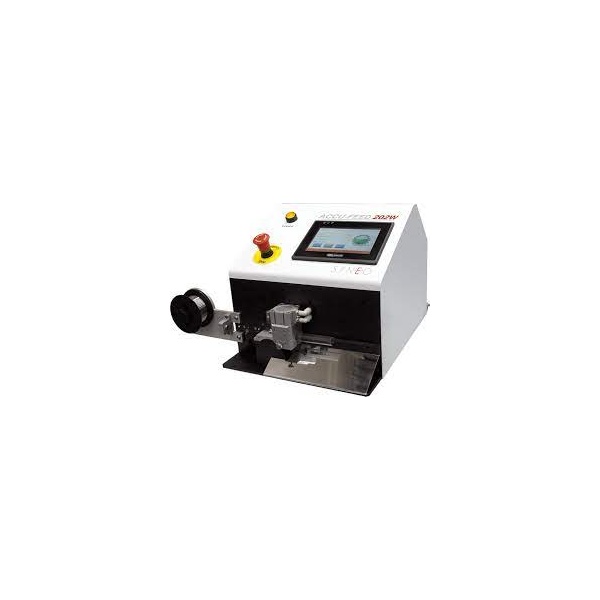

ACCU - Cut 202W

Full-color, touch-screen HMI
Unparalleled cut-length repeatability
Carbide tooling for long cutter life and ideal cut quality
Recipe-driven software for fast changeovers with barcode reader integrations
Programmable routine service and maintenance reminders
Integrates with Accu-Feed and Accu-Bin systems for enhanced automation
Unlimited processing options, including CleanAir Deionizer and Scrap Eject

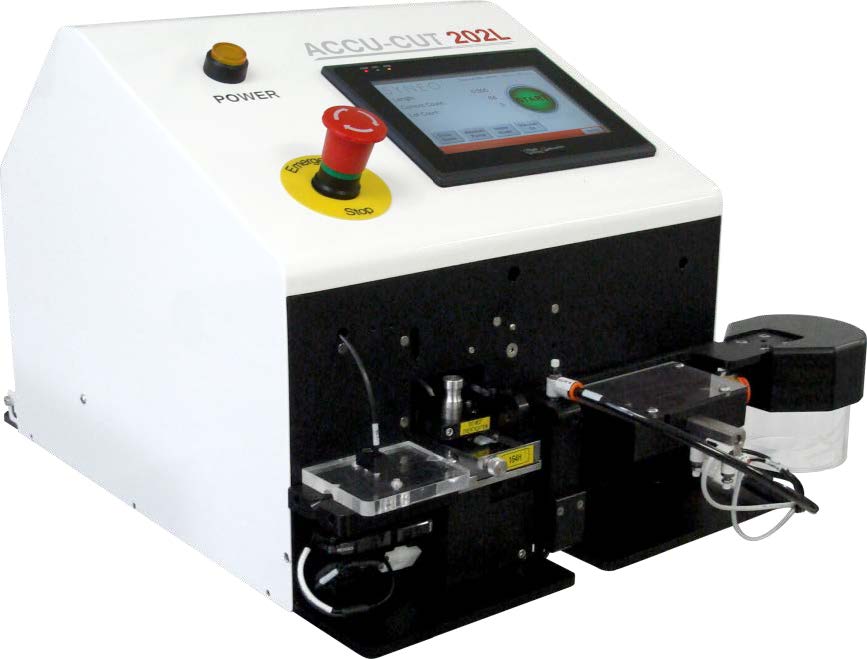

ACCU -Cut 202L

Square cuts and precise lengths on hard and soft materials
Fast, repeatable setup with 10-second blade/tooling change and optional Recipe Store and Save system
“Walk-away” automation for stick- and spool-fed materials
Unlimited processing options, including slitting, CleanAir Deionizer, and Scrap Eject
Special process capabilities: angle cuts, dual cuts, slitting, skiving, drilling, inspection
Automatic index crush control

Details
Specifications

ACCU-Cut machines target tight-tolerance flexible tubing and wire cutting applications, including soft, brittle and braided and non-braided material such as silicone, peek,nylon , PTFE and stainless and nitinol wire.
ACCU-Cut machines ensure a prefect squre cut, free from burrs.

Specification	Accu-Cut 202W	Accu-Cut 202L	Accu-Cut 700L
Rate	200 ppm		30 ppm
Speed	14.566”/second (37 cm/second)		14”/second (36 cm/second)
High Speed Option	44.882”/second (114 cm/second)		45”/second (114 cm/second)
Standard Deviation	.005” (0.13 mm)		.003” (0.08 mm)
Repeatability (+/-)	.2-.5% of total cut length	.005” (0.13 mm)	.007” (0.18 mm)
Design Annual Usage	10 million cycles		2 million cycles
Maximum Blade Force	20 lb. (9.07 kg)		Not specified
Typical Materials	All types of wire	All types of tubing (except metal braided)	Braid-reinforced, PEEK, polycarbonate, nylon 12, stainless steel tubing
Cut Length Range	.020-300” (0.51-7620 mm)		.050-72” (1.27-1829 mm)
Cut and Slit Length Range	0-100” (0-2540 mm)		Not specified
Length Handling Range	2-1000” (5-2540 cm)		2-100” (5-254 cm)
OD Handling Range (Cut)	.010-.500” (2.54-12.7 mm)		.025-.350” (.64-8.90 mm)
Power Requirements	100-240VAC at 1A
Air Requirements	90 psi at 0.1-5 cfm
HMI	7” full color LCD touchscreen
Dimensions	14” x 19” x 14” (35.6 x 48.2 x 35.6 cm)
Weight	50 lb. (22.7 kg)		Not specified
Storage Environment	50-100° F, 60% humidity		Not specified
Certifications	CE optional; safety cover & interlocking switch standard
