The AEP Connector Press Series represents a significant advancement in connector insertion technology, combining automation with precision engineering to meet the demands of modern PCB assembly. Its features are designed to enhance efficiency, improve quality control, and facilitate integration into ...Read more

Syneo - Automatic Electric Press

FEATURES
AEP - XT

High-performance rotary-shouldered connection.
Proprietary thread design for enhanced fatigue resistance.
70% more torque than API connections.
Improved hydraulics with reduced internal pressure loss.
Streamlined design for better drill string performance.

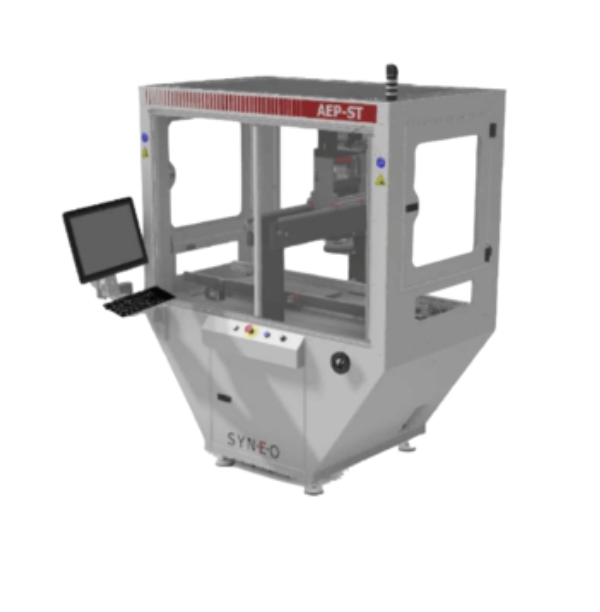

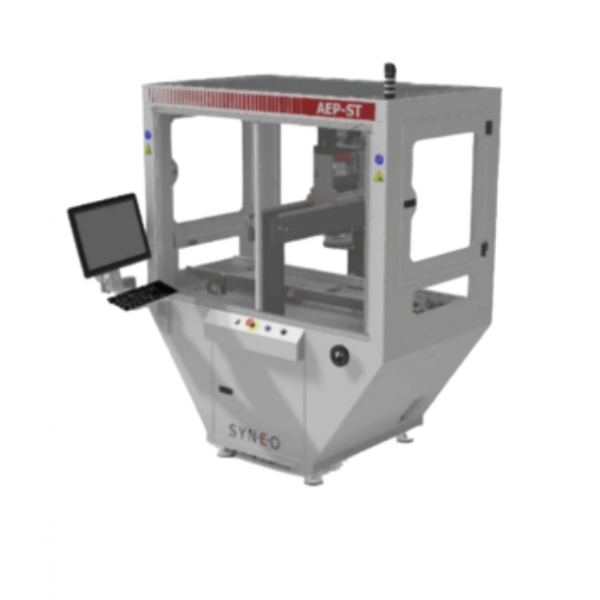

AEP - ST

Automated servo electric press machine system suited for dedicated applications consisting of “flat rock” style connector pressing; in-line process; mid to high volume; single to low mix applications

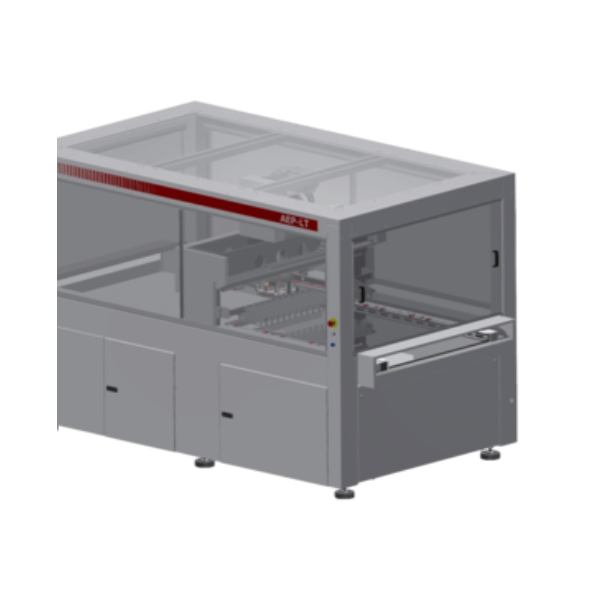

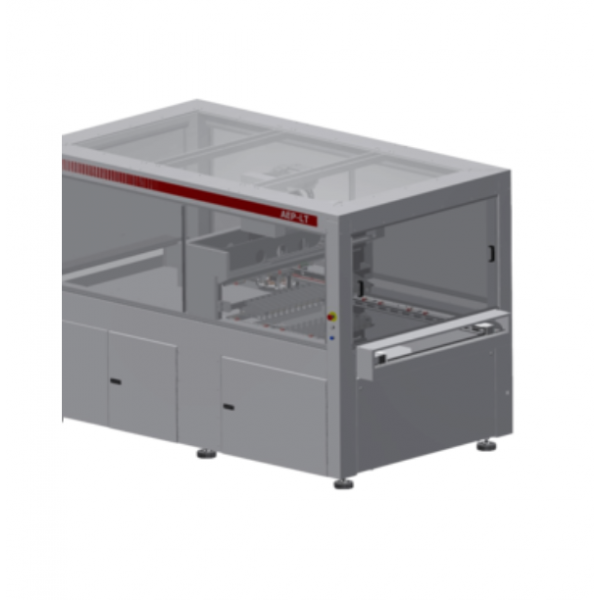

AEP - LT

Automatic board width adjustment.
Automatic vision alignment system.
True distance measurement to prevent folding pins.
Extremely flexible with changeover times of less than 1 minute.
Industry 4.0 ready with common software for easy recipe transfer.

Details
Specifications

AEP - XT	AEP - ST	AEP - LT
48% smaller footprint than previous AEP’s Automatic Board Width Adjustment Automatic Vision Alignment System (TDM) True Distance Measurement to prevent folding pins Accommodates a backplane carrying high speed connector Uses Dedicated Bottom Fixtures OR Individual Bottom Tool Extremely Flexible with Changeover times of less than 1 minute True SMEMA Interface – no expensive buffer needed CAD Import system to quickly transfer press position information Common Software with 1 Click Recipe Transfer Between Machines Automatic Profile generation – NO MORE PROFILES TO WRITE Industry 4.0 Ready	BOARD SIZE CAPACITY: 350mm x 600mm MAX CONNECTOR SIZE: 152mm x 50mm FORCE CAPACITY: 1 Ton CONNECTOR TYPE: FLAT ROCK PCB LOCATION: MECHANICALLY CENTERED IN LINE, SMEMA	Automatic Board Width Adjustment Automatic Vision Alignment System (TDM) True Distance Measurement to prevent folding pins Accommodates a backplane carrying high speed connector Uses Dedicated Bottom Fixtures OR Individual Bottom Tool Extremely Flexible with Changeover times of less than 1 minute True SMEMA Interface – no expensive buffer needed CAD Import system to quickly transfer press position information Common Software with 1 Click Recipe Transfer Between Machines Automatic Profile generation – NO MORE PROFILES TO WRITE Industry 4.0 Ready
