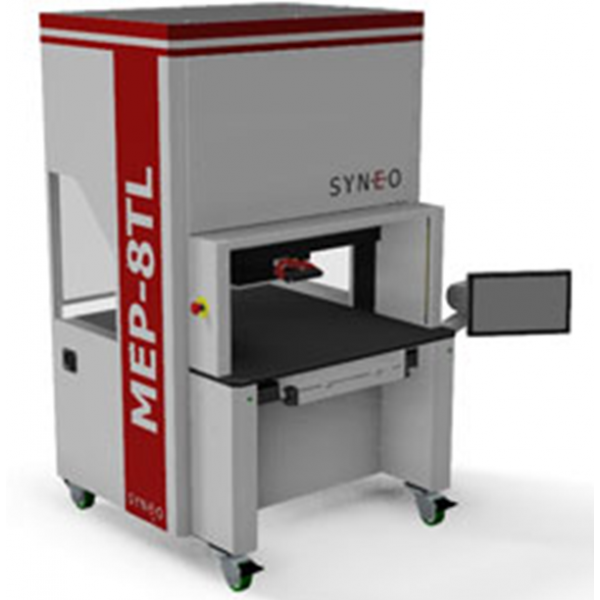

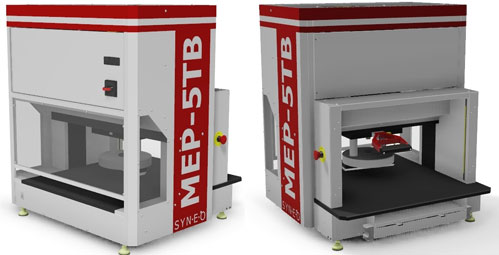

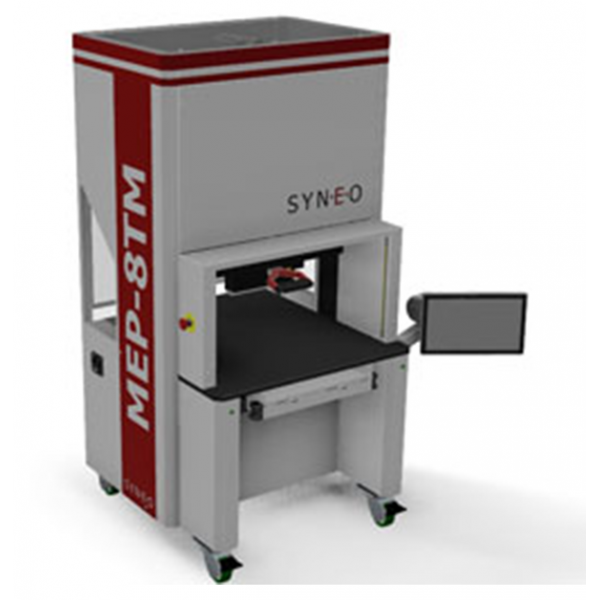

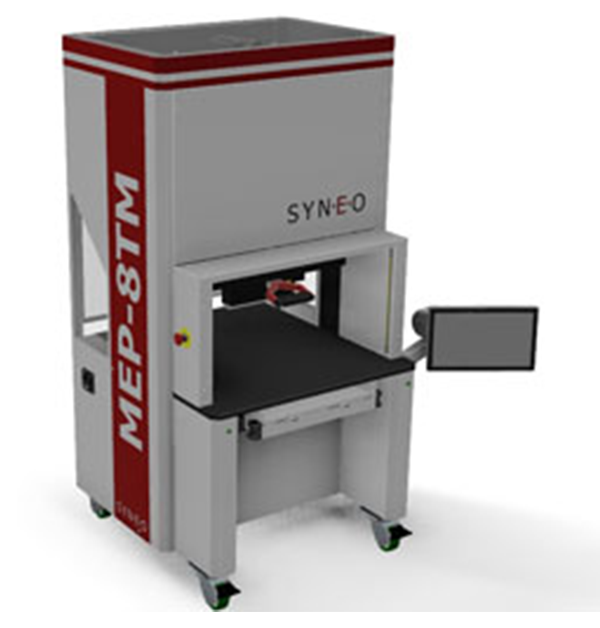

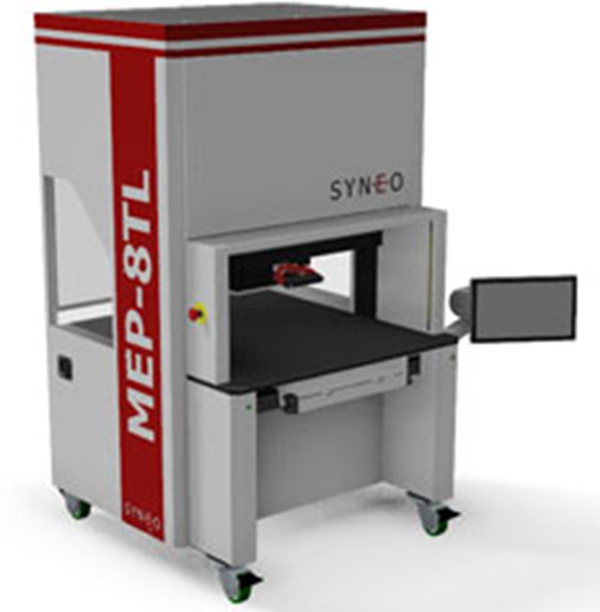

The MEP series of electric press machines—comprising the MEP-5TB, MEP-8TL, and MEP-8TM—offer cutting-edge technology tailored to meet the demands of modern PCB assembly and industrial applications. With their robust designs, user-friendly controls, and advanced safety features, these machines are essential tools for enhancing productivity and ensuring quality in manufacturing operations.
| Specification | MEP-8TM | MEP-8TL | MEP-5TB |
|---|---|---|---|
| Max PCB Size | 680 x 910 mm (27″ x 36″) | 830 x 1060 mm (33″ x 42″) | 46 CM x 61 CM (18″ x 24″) |
| Max Connector Size | 279 x 38 mm (11″ x 1.5″) | 279 x 38 mm (11″ x 1.5″) | Not specified |
| Machine Force | 8 Tons | 8 Tons | 5 Tons |
| Dimensions | 980 x 930 x 1870 mm (39″ x 37″ x 74″) | 980 x 930 x 1870 mm (39″ x 37″ x 74″) | 56 CM x 61 CM deep (22″ x 24″) |
| Load Cell | 4 | Not specified | |
| Estimated Cycle Time | 3-5 sec | Not specified | |
| Pressing Travel Distance | 134.6 mm (5.3″) | Not specified | |
| Force System Resolution | 0 to 800 Lbf. 0.05 Lbf. 800 Lbs. to 16,000 Lbf 0.75 Lbf | Not specified | |
| Force System Accuracy | 0 to 250 Lbf: 10 Lbf of actual reading. 250 Lbf to 10,000 Lbf, 5% of actual reading | Not specified | |
| Pressing Head Max Speed | 12 mm/s | Not specified | |
| Pressing Head Min Speed | 0.025 mm | Not specified | |
| Electric Supply | 208/240 VAC, 1 ph, 15A, 50/60Hz | 110 or 220 VAC, 1 phase, 15 Amps, 50/60 Hz | |
| Air Supply | Dry air at 80 psi (0.6 Mpa) | Air at 80 psi for air table only | |
| Additional Features |
- Fully automatic setup - Dynamic force adjustment using PAST, PAR or FAT - Machine Vision bar code reading and PCB locating - Board thickness measurement - Manual head rotation (0,90 degrees) |
- All electric press, hi-frame design - Windows PC control with touchscreen monitor, keyboard, mouse - Full force available throughout travel - Head is manually moveable throughout opening - Flat rock press head dimensions:203 MM x38 MM (8″x1.5″) - Teflon Hard Coat aluminum table - Two-hand safety actuation - Press to force or height with error detection - Dynamic force adjustment using PAST, PAR or FAT - Fully automatic setup - Board thickness measurement - Maximum tool length:16” - Approximate weight:350 lbs |
|
