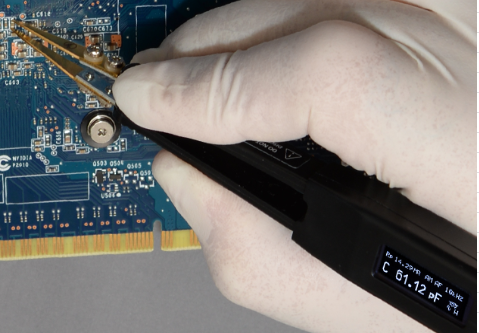

screenshot_2023-11-02_120431_1373289809
Smart Tweezers ColibriTM combines a pair of gold-plated SMD tweezers with ergonomic shielded handles and a precise full featured LCR impedance meter in a compact, lightweight instrument. Smart Tweezers Colibri™ measures electronic component's capacitance, resistance and inductance with high speed by ...Read more
Smart Tweezer ST5C Colibri

Features:

  • Built-in direct LCR probe
  • Convenient one-hand operation
  • Ideal for Surface Mount Devices
  • Automated component identification
  • Automated test range selection
  • Manual C, R, L and ESR modes
  • Manual test frequency overrides
  • Test signal level 0.5 Vrms
  • Portable and ergonomic design
  • OLED Display
  • Built-in Li-Ion battery



  • Details
  • Specifications

Smart Tweezers ColibriTM combines a pair of gold-plated SMD tweezers with ergonomic shielded handles and a precise full featured LCR impedance meter in a compact, lightweight instrument. Smart Tweezers Colibri™ measures electronic component's capacitance, resistance and inductance with high speed by evaluating circuit impedance. Smart Tweezers Colibri™ provides a perfect solution for testing and identification of Surface Mount Devices (SMD) as well as for troubleshooting of complex electronic systems.



Handy Tool for Tiny SMD Components

Surface mount devices are usually tiny and without wire leads, making them more difficult to test and identify SMD than conventional components. Smart Tweezers Colibri gives users an easy way to sort and evaluate loose components and to perform on-board measurements and debugging. Precise gold-plated tips made of non-magnetic steel are able to pick and reliably contact SMD components or take measurements from the devices already mounted on a board.

Capacitor ESR Meter Mode

Smart Tweezers Colibri TM feature a ESR Meter mode for quality testing of high value capacitors.

Perfect for Conventional Components

Smart Tweezers Colibri TM works fine with conventional though-hole electronic components. The unit helps to verify values with high speed and precision. Unmarked components would be easily identified, paired and sorted.



Built-in Li-Ion Polymer Rechargeable battery

Smart Tweezers Colibri™ comes equipped with a built-in high-capacity Li-Ion rechargeable battery, Battery replacements are not required. Micro USB charging cord and power supply (USA and Canada only) are included. Smart Tweezers ColibriTM can be charged from any standard USB port or USB wall charger.

Automatic Component Recognition

Smart Tweezers ColibriTM automatically determines type of the component (resistance, capacitance or inductance), selects proper range and signal frequency for highest accuracy measurements. Manual overrides are available as well. Unit's display indicates the type of the component, measurement result and test conditions. The primary display shows the present reading. The secondary display (on top) shows the present reading of additional parameters or measurement conditions when the primary display shows some other feature (L, C).

Ergonomic Design and Default settings Convenient Controls

  • Default setting can be modified by the Mode/Parameter Control.

td colspan="5" rowspan="1" data-sheets-value="{"1":2,"2":"0.5% (1% Rx0.5% (1% Rx1Ohm ; 0.5% 1Ohm5Mohm)td colspan="5" rowspan="1" data-sheets-value="{"1":2,"2":"1% (5% Cx1% (5% Cx10pF ; 1% 10pF5000uF)td colspan="5" rowspan="1" data-sheets-value="{"1":2,"2":"1% (5% Lx1% (5% Lx10uH ; 1% 10uH500mH)td colspan="7" rowspan="1" data-sheets-value="{"1":2,"2":"** capacitors with Cx** capacitors with Cx5pF can be measured only with manual settings.

Physical Specifications
Operating Temperature: 0 °C to +55 °C
Battery Type: 3.7V LiPO rechargeable 180mAH
Battery Life (continuous): 20 Hours typical, 3 hours charging cycle
Electromagnetic Compatibility (EMC): FCC 15 part B, SE
Size: 148 x 20 x 15 mm
Weight: 29 grams
Warranty: 1 year
Technical Specifications
AC test mode Test frequency: 1 kHz, 10 kHz, 100 Hz
Test signal level: 0.45 +/- 5% Vrms Sine wave
Measurement Accuracy
Resistance Basic Accuracy*:
Capacitance** Basic Accuracy*:
Inductance Basic Accuracy*:
* optimal test frequency, offset subtracted from the result. Typical offset for resistance – 0.035 Ohm, for capacitance – 0.3pF
