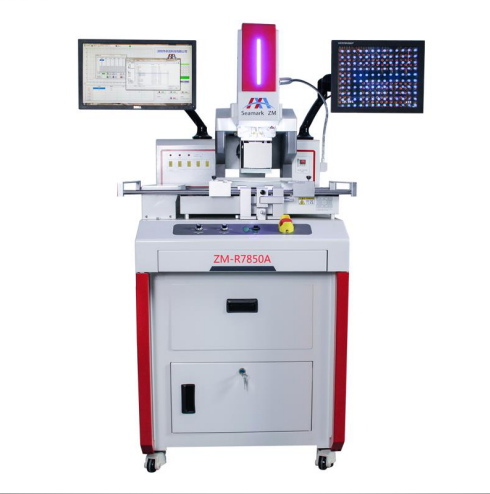

ZM Seamark - R7850A

Features:

  • Convenient temperature setting and saving Independently programmed three temperature zones, convenient and quick setting of temperature parameters and storage temperature record. The upper temperature zone uses a ceramic heater with a built-in vacuum nozzle for chip adsorption, electric control 360 degree rotation alignment, with pressure protection device, double over-temperature protection and alarm function, software can be encrypted.
  • Multi-function control Industrial computer control, it can be set a variety of operating modes, display in real time and edit temperature curve. Each temperature curve can be set more than 12 segments. It can automatically perform curve analysis, and automatically generate a log file to save the extremely large amounts of temperature curve. It is convenient to retrieve historical parameters and trace quality abnormalities.
  • HD optical alignment system Imported HD CCD (2 million pixel) optical alignment system, through the PC control servo system X / Y automatic moving optical lens alignment, using 17-inch HD industrial display (1080P 16:9) HD display and 17-inch standard definition display operation. With automatic feeding device for automatic feeding and automatic receiving.



  • Specifications

• Total Power: 9.2KW Max
• Power: AC380V±10% 50/60Hz
• PCB Size: Max 640×520mm;Min6×6mm
• Chip Size: 2*2-80*80mm
• Heater power: top heater 1200W bottom 1200W IR 6600W
• Sensor: 5pcs
• Control System : Industrial PC + Servo motion control system
• Operation method: Industrial PC control
• Alignment system: 2 million pixel HD digital imaging system, Automatic optical zoom (Korea
CNB) + Laser red dot indication
• Display system: 17〞HD industrial display(1080P 16:9)+17〞SD display
• Camera range: 50×50mm( Max )movable
• Mounting accuracy: ±0.01mm
• Temp control: K-type thermocouple (Closed Loop), precision ±1°C
• Positioning: V-groove, with universal fixture (shaped fixture customizable)
• Feeding device: YES
• Dimensions: 1020*840*1620mm
• Weight: 230KG
