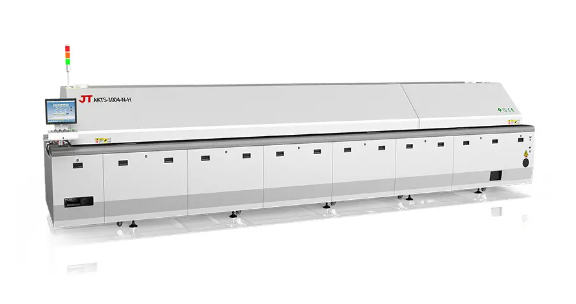

JT - KT Series High-End Lead-Free Hot Air Reflow Oven

Our Products

High capacity, normal working conveyor speed reached 160cm/min. Low energy consumption,low cost. Special for the high-speed production and high density PCBA technology;
Powerful temperature control, setting and actual temperature difference within 1.0℃, unloadand load temperature fluctuates within 1.5°C; Rapid temperature raising ability, temperature difference between neighboring zone 100°c;
The newest insulation technique and new chamber design ensured that surface temperature isroom temperature +5°C;
N volume controllable in whole process,O density closed-loop controlled independently at 50-200ppm in every zone;
The newest cooling technology, optional double side multi-cooling zone, the effective coolinglength is 1400mm, make sure fast cooling of the product to the lowest output temperature;
New two level flux separation system with multi-point collection which make separationthoroughly, so that the maintenance time and frequency was reduced significantly;
Dual line in different speed, one set cost, double capacity, energy saving 65%.
