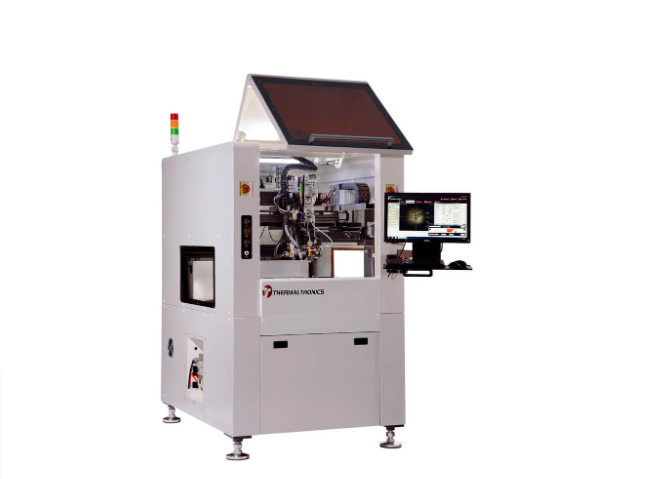

Thermaltronic - TMT R9900S

Features:

  • 8-Axis Soldering/Dispensing Platform
  • Full vision mapping & Fiducial Marks
  • Laser Height Measurement
  • Curie Heat Technology provides precise temp. control
  • Flux & Solder Paste dispensing
  • Intelligently compensates for PCBA variance
  • Fume extraction
  • PCB Loader w/Preheater (Optional)



  • Specifications

TMT-R9900S SPECIFICATIONS

Input Line Voltage: TMT-R9900PS-2 220-240 VAC
Servo Motor Axis: 8 Axes
Camera View 450mm x 550mm
PCBA Max Size 450mm x 550mm
Soldering Region Max Size 450mm x 450mm with rotation
Dynamic Range of Shaft: X-Axis 550mm
  Y-Axis 800mm
  Z1, Z2 Axis 150mm
  Rotation Axis 360°
Shaft Speed: X, Y Axis 0.1mm - 1200mm/sec
  Z Axis 0.1mm - 800mm/sec
  Rotation Axis 0.1 - 360°/sec
Position Repeatability: X, Y, Z Axis ±0.01mm
  Rotation Axis ±0.02°
Rotation Platform: Repeatability sec ±5 (0.001°)
  Accuracy sec ±10 (0.002°)
  Paralellism ±0.005mm
  Concentricity ±0.01mm
Camera Resolution: 0.015mm
  Sensor 1/2" CMOS
  Pixel Size 6.2 x 5.2 Micron
Air Pressure: Max. 6 Bar / 120 PSI
Solder Wire Diameter Range: 0.3mm - 1.6mm
Controller: Industrial Computer w/Proprietary Software
Operating System: Windows 10 Professional
Soldering System: 120 watts (40 watts RF output)
Curie Heat Technology: 250°C - 500°C (382°F - 932°F)
Power Consumption: 2.2 KVA
Size (W x H x D): 1600mm (H) x 1452mm (D) x 1000mm (W)
Weight: 750 KG (1650 LBS)
