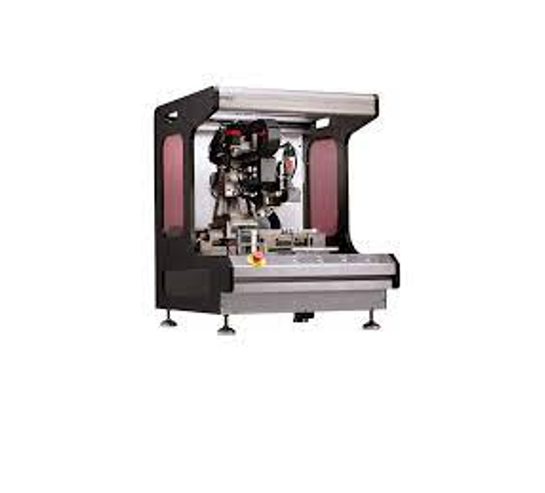

Thermaltronic - TMT R9800S

Features:

  • Dual Arm, Six Axis Soldering Robot
  • Intelligently compensates for PCBA variance
  • Image Recognition & Mapping System
  • Laser Height Measurement
  • Curie Heat Technology for precise temperature control



  • Specifications

TMT-R9800S SPECIFICATIONS

Input Line Voltage: TMT-R9800PS-1 100-120 VAC
  TMT-R9800PS-2 220-240 VAC
Servo Motor Axis: 6 Axis
Dynamic Range of Shaft: X-Axis 200mm
  Y-Axis 200mm
  Z1, Z2 Axis 70mm
  Rotation Axis 360°
Shaft Speed: X, Y, Z Axis 0.1mm - 300mm/sec
  Rotation Axis 0.1 - 450°/sec
Positioning Repeatability: X, Y, Z Axis ±0.01mm
  Rotation Axis ±0.02°
Camera Resolution: 0.015mm
Air Pressure: Max. 6 Bar / 87 PSI
Working / Vision Size: 200mm x 200mm
Solder Wire Diameter Range: 0.3mm - 1.6mm
Controller: Industrial Computer w/Proprietary Software
Operating System: Windows 10 Professional
Soldering System: 120 watts (40 watts RF output)
Curie Heat Technology: 250°C - 500°C (382°F - 932°F)
Power Consumption: 1 KVA
Size (W x H x D): 800mm (H) x 702mm (D) x 620mm (W)
Weight: 125 KG (275 LBS)
