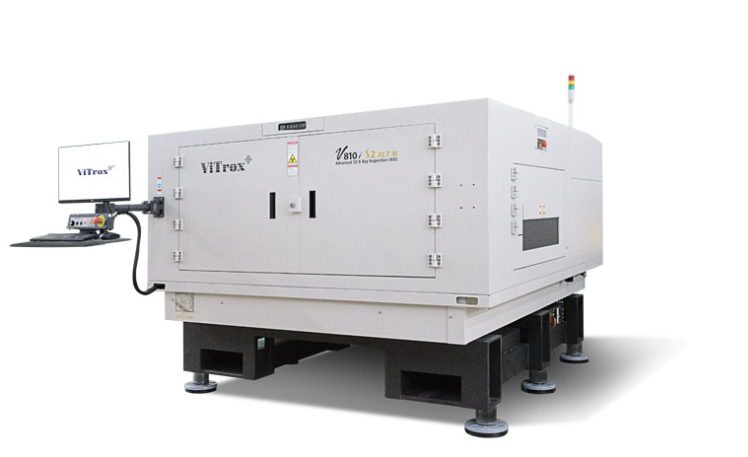

V810i S2 : 3D In-line Advanced X-ray Inspection System (AXI)


World fastest and best test coverage AXI system for PCB SMT assembly line

System V810i S2 Series
System controller Integrated controller with 8 Core Intel Xeon processors
Operating system Windows 10(64 bit)
Test Development Environment
User interface Microsoft Windows based software solution with easy-to-use GUI and password-protected user levels
Off-line test development software Optional for off-line PC
CAD conversion tool Support 4 different types of CAD in V810i software and optional software available to translate other CAD data to ViTrox's format
Typical test development time 4 hours to 1.5 days to convert raw CAD file and develop application
Line Integration
Transport heights 865mm-1025mm
Line communication standard SMEMA, HERMES
Barcode readers Compatible with most industry standard barcode readers
Performance Parameters*
False Call rate 500-1000ppm
Minimum features detection capability
Joint pitch1 0.3mm and above
Short width2 0.045mm
Solder thickness 0.0127mm
Allowable Panel Characteristics ** V810i S2 XLM
Maximum PCB Size (L x W) 865.0mmx660.4mm (34”X 26”)
Minimum PCB Size (L x W) 76.2mmx76.2mm (3" x 3" )
Maximum PCB inspectable area 865.0mmx654.4mm (34”x25.7”)
Maximum PCB thickness 12.7mm (500 mils)
Minimum PCB thickness 0.5mm (20 mils)
PCB warp Downside 3.3mm; Upside 3.3mm
Maximum PCB weight 15kg
Top Clearance of PCB 50mm @ 19µm resolution
31mm @ 15µm resolution
13mm @ 11µm resolution
31mm @ 10µm resolution#
13mm @ 7.5µm resolution#
(Calculated from Board Top surface)
Bottom Clearance of PCB 80mm
PCB edge clearance 3mm
100% Press-fit testability Yes (With PSP2 / PSP2.1 feature)
PCB Temperature 40℃
