V310i SE XXL : Advanced 3D Solder Paste Inspection (SPI)Largest Platform among all SPI Series which is able to cater up to 47.2"x27.2" board size with latest vision technologies.   ...Read more

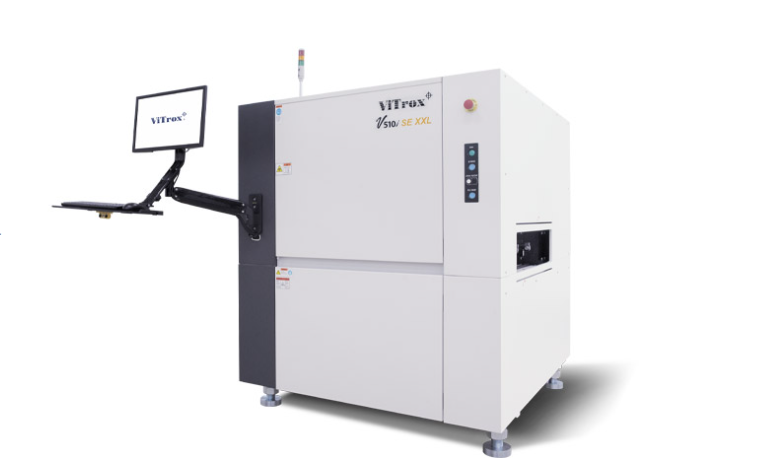

Vitrox - V510i SE XXL


  • Details
  • Specifications
V310i SE XXL : Advanced 3D Solder Paste Inspection (SPI)


Largest Platform among all SPI Series which is able to cater up to 47.2"x27.2" board size with latest vision technologies.

System V510i SE XXL
System Performances
Inspection Functions Missing, Offset, Skewed, Polarity, Billboard, Tombstone, Lifted/Bent Leads, Excess/Insufficient Solder, Overturn, Bridging, Wrong Part (OCV Marking), Pin Through Hole (Solderability & Pin Detection), Package Coplanarity, Lifted Lead (Height Measurement), Foreign Material Detection, Polarity Dimple Measurement
Board Level Traceability Camera-Read Barcodes; External Barcode Reader Configured; OCR Capability with Batch Code Logging
System Hardware
Operating System Windows 10 (64 bit)
Optical Resolution & FOV Size * Default: 60mmx45mm @ 15µm telecentric lens
Option: 52mmx39mm @ 13µm telecentric lens
Option: 40mmx30mm @ 10µm telecentric lens
Option: 32mmx24mm @ 8µm telecentric lens
Inspection Speed 12MP CoaXPress @ 15μm resolution: up to 64cm²/sec
3D Technologies Phase Shift Profilometry (PSP) Methodology with 4-way projectors
Lighting Module Multiple Color, Multiple Angle, Multiple Segment LED Lighting Head, Auto Calibration Concurrent Lighting Module
Conveyor Width Adjustment Auto Width Adjustment; Bottom-Up Clamping; In-line SMEMA
PCB Dimension Standard FDL
Maximum PCB Size (L x W) 620mmx690mm (24.4”x27.2”)
Option: 1200mmx690mm (47.2”x27.2”)
DL Equal: 620mmx325mm (24.4”x12.8”)
Single Lane: 620mmx600mm (24.4”x23.6”)
Minimum PCB Size (L x W) 50mmx50mm (2”x2”) 50mmx50mm (2”x2”)
Maximum PCB Inspectable Area (L x W) 620mmx683mm (24.4”x26.9”)
Option: 1200x683mm (47.2”x26.9”)
DL Equal: 620mmx318mm (24.4”x12.5”)
Single Lane: 620mmx593mm (24.4”x23.3”)
Maximum PCB Thickness 15mm (0.59") 8mm (0.31")
Minimum PCB Thickness 0.5mm (0.02") 0.5mm (0.02")
Maximum PCB Weight 7kg (Option: 15kg) 7kg
Top Clearance of PCB 50mm 50mm
Bottom clearance of PCB 100mm 100mm
PCB Edge Clearance 3.5mm (0.14”) 3.5mm (0.14”)
PCB Transport Height 890mm-965mm
PCB Temperature Ambient operating temperature is ~5⁰C to 40⁰C, maximum PCB temperature 80⁰C.
