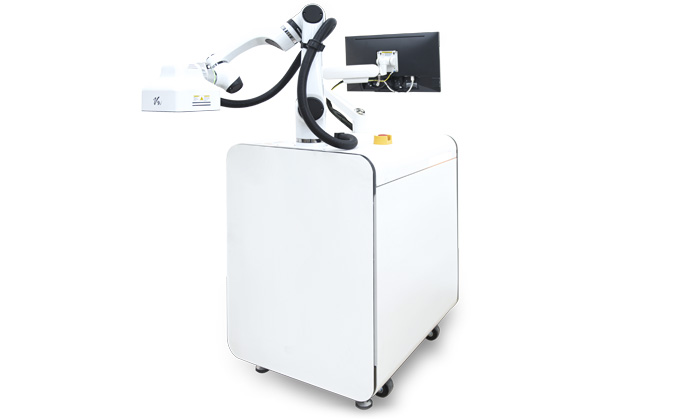

v9i-robotic-inspection-vision-system
V9i FI : Advanced Robotic Vision (ARV)Specialized Final Inspection Solution for various industries & applications with motorized angle lighting ...Read more
Vitrox - V9i Final Inspection

Features:

  • Final assembly visual inspection
  • Uncompromized inspection coverage - mimic human inspection angle
  • Optional combination of conformal coating & final inspection in a common system
  • Flexible inspection platform - workbench or conveyor
  • Height measurement option
  • Compact in size



  • Details
  • Specifications

V9i FI : Advanced Robotic Vision (ARV)


Specialized Final Inspection Solution for various industries & applications with motorized angle lighting

System Performances V9i Final Inspection (FI)
Inspection Functions V9i FI provides a wide coverage of final products inspection through the flexibility of multi-angle robotic arms and able to apply rule based & self-learn algorithms to cater for different industry sectors.
System Type Stand alone system integrated with Cobot
Inspection Coverage Polarity/ Orientation, Absense/Presence, Knock-off, Component Chip-off, Foreign Object, PCB Exposed Copper, Assembly Inspection, Label Print Inspection, Label Quality Inspection, Connector Inspection, Height Measurement
Board & Component Level Tracebility Camera-Read Barcodes; External Barcode Reader Configured; OCR Capability with Batch Code Logging
System Hardware
Computer System Intel Core i7, 32GB/64GB RAM, 512GB SSD, 1TB HDD
Operating System Windows 10 Pro (64 bit)
Camera & FOV Size USB3.0, Teli Color 5MP, FOV 65mm*65mm
Optical Resolution 14μm-32μm
Inspection Speed 30cm²/s
Lighting Module Motorized RGBW + Coaxial Lighting or UVW + Coaxial Lighting
X-Y-Z Axis Repeatabilty ±50μm
PCB Dimension
Minimum PCB Size 50mm(L)x50mm(W)
Maximum PCB Size 510mm(L)x510mm(W)
Thickness Measurement
Minimum Thickness N/A
