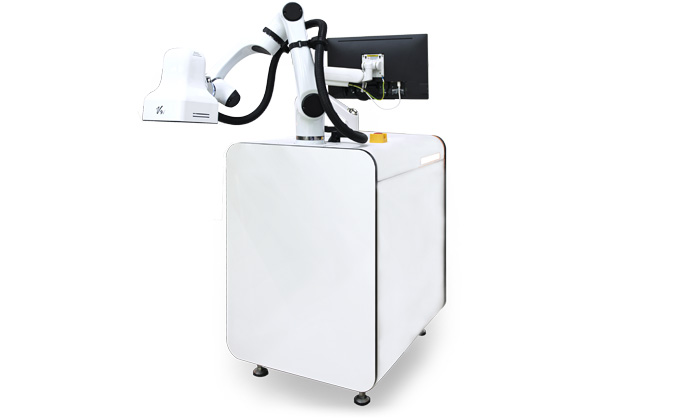

v9i-ci-robotic-inspection-vision-system
V9i CI : Advanced Robotic Vision (ARV)Eliminate harmful coating environment on human with reliable and repeatable inspection results. ...Read more
Vitrox - V9i Coating Inspection

Features:

  • flexible conformal coating inspection by using a robotic arm (Cobot) that allows the user to set side angle inspection with ease and also full board coverage.



  • Details
  • Specifications

V9i CI : Advanced Robotic Vision (ARV)


Eliminate harmful coating environment on human with reliable and repeatable inspection results.

System Performances V9i Coating Inspection (CI)
Inspection Functions V9i CI provides fast and reliable conformal coating inspection. It has multi-angle views with both ruled based & self-learned algorithms to cater for various inspection needs.
System Type Stand alone system integrated with Cobot
Inspection Coverage Coating Splash, Bubbles, Insufficient, Foreign Object, Coating Sratch, Orange Peel, Missing Coating, Excess Coating, Coating on Connector, Keep-out-area, Coating Thickness Measurement
Board & Component Level Tracebility Camera-Read Barcodes; External Barcode Reader Configured
System Hardware
Computer System Intel Core i7, 32GB/64GB RAM, 512GB SSD, 1TB HDD
Operating System Windows 10 Pro (64 bit)
Camera & FOV Size USB3.0, Teli Color 5MP, FOV 65mm*65mm
Optical Resolution ~32μm/pixel
Inspection Speed 30cm²/s
Lighting Module Hybrid UV + White Light
X-Y-Z Axis Repeatabilty ±50μm
PCB Dimension
Minimum PCB Size 50mm(L)x50mm(W)
Maximum PCB Size 510mm(L)x510mm (W)
Thickness Measurement
Minimum Thickness >25μm
