V810i S2 XLW : Advanced 3D X-ray Inspection System (V810i S2 XLW)Largest Platform among all AXI Series which able to cater up to 52" x 52" board size. ...Read more
Vitrox - V810i S2 XLW


  • Details
  • Specifications

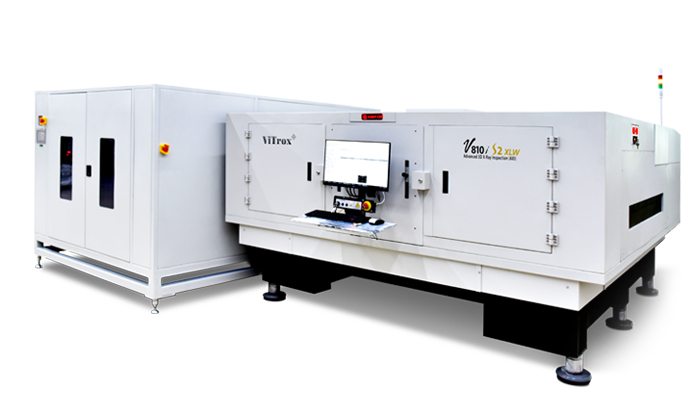

V810i S2 XLW : Advanced 3D X-ray Inspection System (V810i S2 XLW)


Largest Platform among all AXI Series which able to cater up to 52" x 52" board size.

System V810i S2 Series
System controller Integrated controller with 8 Core Intel Xeon processors
Operating system Windows 10 Pro (64 bit)
Test Development Environment
User interface Microsoft Windows based software solution with easy-to-use GUI and password-protected user levels
Off-line test development software Optional for off-line PC
CAD conversion tool Support 4 different types of CAD in V810i software and optional software available to translate other CAD data to ViTrox's format
Typical test development time 4 hours to 1.5 days to convert raw CAD file and develop application
Line Integration
Transport heights 865mm-1025mm
Line communication standard SMEMA, HERMES
Barcode readers Compatible with most industry standard barcode readers
Performance Parameters*
False Call rate 500-1000ppm
Minimum features detection capability
Joint pitch1 0.3mm and above
Short width2 0.045mm
Solder thickness 0.0127mm
Allowable Panel Characteristics ** V810i S2 XLW
Maximum PCB Size (L x W) 1320.8mmx1320.8mm (52" x 52")
Minimum PCB Size (L x W) 127mmx127mm (5" x 5")
Maximum PCB inspectable area 1320.8mmx1300.48mm (52"" x 51.2"")
*Dual Stage Inspection with External Rotator
Maximum PCB thickness 10mm (393 mils)
Minimum PCB thickness 1.5mm (60 mils)
PCB warp 2mm downward, 1mm upwards (without PSP); 3mm downward, 1.5mm upwards (with PSP)
Maximum PCB weight 25kg
Top Clearance of PCB 50mm @ 19µm resolution
31mm @ 15µm resolution
14mm @ 11µm resolution
(Calculated from Board Top surface)
Bottom Clearance of PCB 80mm
PCB edge clearance 10mm
100% Press-fit testability Yes (With PSP2 / PSP2.1 feature)
PCB Temperature 40℃
