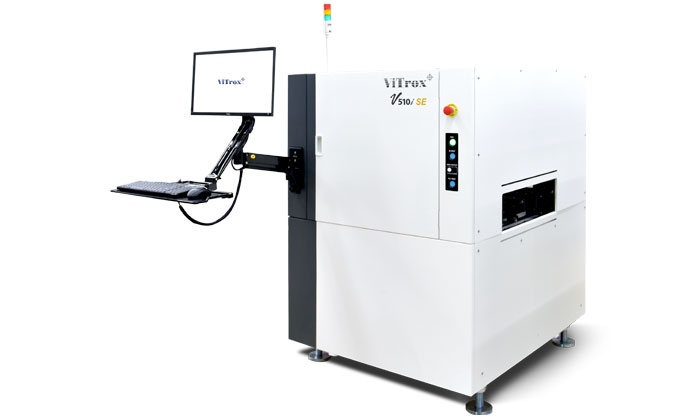

V510i SE : Advanced 3D Optical Inspection System (AOI)


The V510i Optimus 3D AOI system is a next generation solution for the SMT line, offering the powerful 3D inspection capabilities.

System V510i SE
System Performances
Inspection Functions Missing, Offset, Skewed, Polarity, Billboard, Tombstone, Lifted/Bent Leads, Excess/Insufficient Solder, Overturn, Bridging, Wrong Part (OCV Marking), Pin Through Hole (Solderability & Pin Detection), Package Coplanarity, Lifted Lead (Height Measurement), Foreign Material Detection, Polarity Dimple Measurement
Board Level Traceability Camera-Read Barcodes; External Barcode Reader Configured; OCR Capability with Batch Code Logging
System Hardware
Operating System Windows 10 Pro (64 bit)
Optical Resolution & FOV Size 12MP CoaXPress Camera
Default: 60mmx45mm @ 15µm telecentric lens
Option: 53mmx39mm @ 13µm telecentric lens
Option: 32mmx24mm @ 8µm telecentric lens
Inspection Speed 12MP @ 15μm resolution: up to 64cm²/sec
3D Technologies Phase Shift Profilometry’s (PSP) Methodology with 4-way projectors
Lighting Module Multiple Color, Multiple Angle, Multiple Segment LED Lighting Head, Auto Calibration Concurrent Lighting Module
Conveyor Width Adjustment Auto Width Adjustment; Bottom-Up Clamping; In-line SMEMA
PCB Dimension
Maximum PCB Size (L x W) FDL: 510mmx250mm (20”x9.8”)
Single Lane: 510mmx540mm (20”x21.2”)
Minimum PCB Size (L x W) 50mmx50mm (2”x2”)
Maximum PCB Inspectable Area (L x W) FDL: 510mmx243mm (20”x9.5”)
Single Lane: 510mmx533mm (20”x20.9”)
Maximum PCB Thickness 4mm (0.16")
Minimum PCB Thickness 0.5mm (0.02")
Maximum PCB Weight 3KG
Top Clearance of PCB 50mm
Bottom Clearance of PCB 100mm
PCB Edge Clearance 3.5mm
PCB Transport Height 875mm-965mm
PCB Temperature Ambient operating temperature is ~5⁰C to 40⁰C, maximum PCB temperature 80⁰C.
