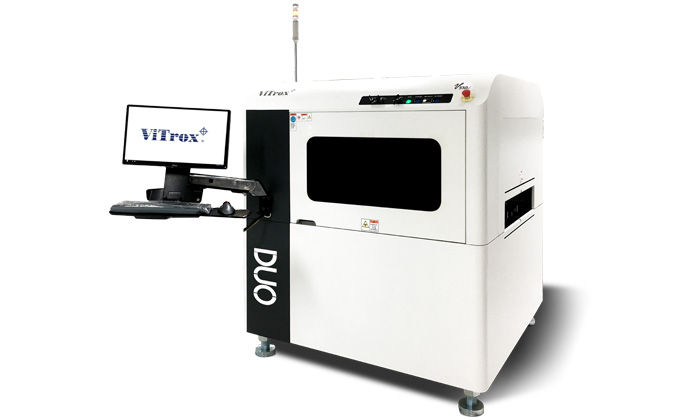

V510i DUO : Advanced Optical Inspection (AOI)


The V510i DUO AOI is a next generation solution for the SMT line, one click 2D+3D algorithms auto conversion.

System V510i Duo
System Performances
Inspection Functions Missing, Offset, Skewed, Polarity, Billboard, Tombstone, Lifted/Bent Leads, Excess/Insufficient Solder, Overturn, Bridging, Wrong Part (OCV Marking), Pin Through Hole (Solderability & Pin Detection), Package Coplanarity, Lifted Lead (Height Measurement), Foreign Material Detection, Polarity Dimple Measurement
Board Level Tracebility Camera-Read Barcodes; External Barcode Reader Configured; OCR Capability with Batch Code Logging
System Hardware
Operating System Windows 10 Pro (64 bit)
Optical Resolution & FOV Size 12MP CoaXPress Camera
Default: 60mmx45mm @ 15µm telecentric lens*
Option: 53mmx39mm @ 13µm telecentric lens*
Inspection Speed 12MP @ 15μm resolution: up to 64cm²/sec
3D Technologies Phase Shift Profilometry’s (PSP) Methodology with 4-way projectors
Lighting Module Multiple Color, Multiple Angle, Multiple Segment LED Lighting Head, Auto Calibration Concurrent Lighting Module
Conveyor Width Adjustment Auto Width Adjustment; Bottom-Up Clamping; In-line SMEMA
PCB Dimension Standard Traverser
Maximum PCB Size (L x W) DL Equal: 330mmx235mm (13”x9.2”)
Single Lane: 330mmx420mm (13”x16.5”)
DL Equal: 330mmx235mm (13”x9.2”)
Single Lane: 330mmx420mm (13”x16.5”)
Minimum PCB Size (L x W) 30mmx30mm (1.2”x1.2”) 50mmx50mm (2”x2”)
Maximum PCB Inspectable Area (L x W) DL Equal: 330mmx228mm (13”x8.9”)
Single Lane: 330mmx413mm (13”x16.2”)
DL Equal: 330mmx228mm (13”x8.9”)
Single Lane: 330mmx413mm (13”x16.2”)
Maximum PCB Thickness 4mm (0.15")
Minimum PCB Thickness 0.5mm (0.02")
Maximum PCB Weight 3kg
Top Clearance of PCB 50mm
Bottom clearance of PCB 70mm
PCB Edge Clearance 3.5mm
PCB Transport Height 875mm-965mm
PCB Temperature Ambient operating temperature is ~5⁰C to 40⁰C, maximum PCB temperature 80⁰C.
