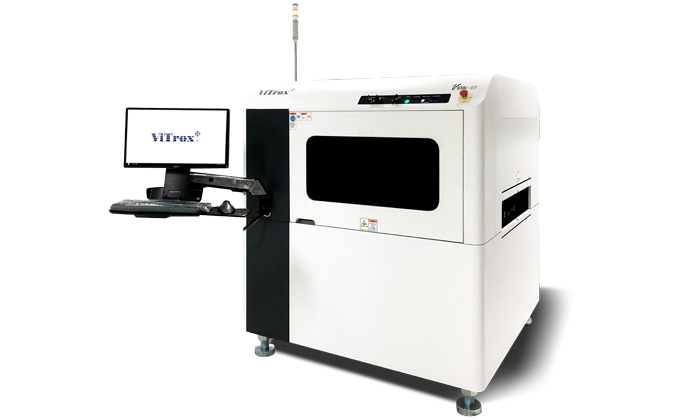

V510i 4.0 : Advanced Optical Inspection (AOI)The V510i 4.0 AOI system is a next generation solution for the SMT line, designed with angle view inspection for top-view hidden defects. ...Read more
Vitrox - V510i 4.0


  • Details
  • Specifications

V510i 4.0 : Advanced Optical Inspection (AOI)


The V510i 4.0 AOI system is a next generation solution for the SMT line, designed with angle view inspection for top-view hidden defects.

System V510i 4.0
System Performances
Inspection Functions Missing, Offset, Skewed, Polarity, Billboard, Tombstone, Lifted/Bent Leads, Excess/Insufficient Solder, Overturn, Bridging, Wrong Part (OCV Marking), Pin Through Hole (Solderability & Pin Detection), Package Coplanarity, Lifted Lead (Height Measurement), Foreign Material Detection, Polarity Dimple Measurement
Board Level Tracebility Camera-Read Barcodes; External Barcode Reader Configured; OCR Capability with Batch Code Logging
System Hardware
Operating System Windows 10 Pro (64 bit)
Optical Resolution & FOV Size
Top: 12MP Coaxpress Camera Angle: 12MP Angle Camera
Default: 60mmx45mm @ 15µm telecentric lens*
Option: 5mmx39mm @ 13µm telecentric lens*
Inspection Speed 12MP @ 15μm resolution: up to 64cm²/sec
3D Technologies Phase Shift Profilometry’s (PSP) Methodology with 4-way projectors
Lighting Module Multiple Color, Multiple Angle, Multiple Segment LED Lighting Head, Auto Calibration Concurrent Lighting Module
Conveyor Width Adjustment Auto Width Adjustment; Bottom-Up Clamping; In-line SMEMA
PCB Dimension
Maximum PCB Size (L x W) 620mmx620mm (24.4”x24.4”)
Option: 810mmx620mm (31.8”x24.4”)
Minimum PCB Size (L x W) 50mmx50mm (2”x2”)
Maximum PCB Inspectable Area (L x W) 620mmx613mm (24.4”x24.1”)
Option: 810mmx613mm (31.8”x24.1”)
Maximum PCB Thickness 7mm (0.27")
Minimum PCB Thickness 0.5mm (0.02")
Maximum PCB Weight 3kg
Top Clearance of PCB 50mm
Bottom clearance of PCB 70mm
PCB Edge Clearance 3.5mm
PCB Transport Height 890mm-965mm
PCB Temperature Ambient operating temperature is ~5⁰C to 40⁰C, maximum PCB temperature 80⁰C.
