V510i XLW : Advanced Optical Inspection (AOI)The V510i XLW AOI is a next generation solution for the SMT line, caters for large board inspection. ...Read more
Vitrox - V510i XLW


  • Details
  • Specifications

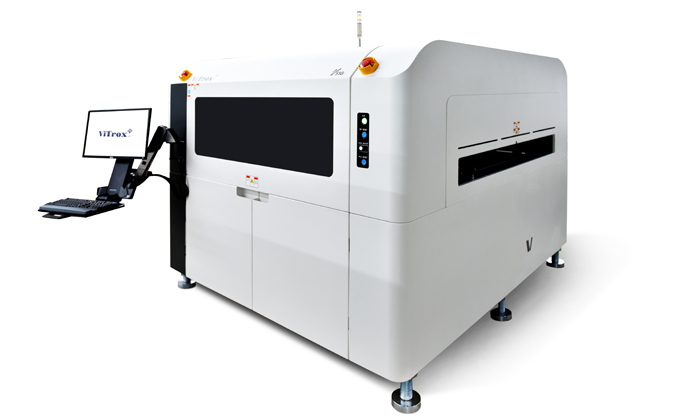

V510i XLW : Advanced Optical Inspection (AOI)


The V510i XLW AOI is a next generation solution for the SMT line, caters for large board inspection.

System V510i XLW
System Performances
Inspection Functions Missing, Offset, Skewed, Polarity, Billboard, Tombstone, Lifted/Bent Leads, Excess/Insufficient Solder, Overturn, Bridging, Wrong Part (OCV Marking), Pin Through Hole (Solderability & Pin Detection), Package Coplanarity, Lifted Lead (Height Measurement), Foreign Material Detection, Polarity Dimple Measurement
Board Level Tracebility Camera-Read Barcodes; External Barcode Reader Configured; OCR Capability with Batch Code Logging
System Hardware
Operating System Windows 10 Pro (64 bit)
Optical Resolution & FOV Size 12MP CoaXPress Camera
Default: 60mmx45mm @ 15µm telecentric lens*
Option: 53mmx39mm @ 13µm telecentric lens*
Option: 32mmx24mm @ 8µm telecentric lens*
Inspection Speed 12MP @ 15μm resolution: up to 64cm²/sec
3D Technologies Phase Shift Profilometry’s (PSP) Methodology with 4-way projectors
Lighting Module Multiple Color, Multiple Angle, Multiple Segment LED Lighting Head, Auto Calibration Concurrent Lighting Module
Conveyor Width Adjustment Auto Width Adjustment; Bottom-Up Clamping; In-line SMEMA
PCB Dimension Standard
Maximum PCB Size (L x W) 1320.8mmx1320.8mm (52" x 52")
Minimum PCB Size (L x W) 127mmx127mm (5" x 5")
Maximum PCB Inspectable Area (L x W) 1310.8mmx1310.8mm (51.6" x 51.6")
Maximum PCB Thickness 10mm (0.39")
Minimum PCB Thickness 1.5mm (0.06")
Maximum PCB Weight 15kg
Option: 25kg
Top Clearance of PCB 50mm
Bottom clearance of PCB 70mm
PCB Edge Clearance 5mm
Option: 10mm for 25kg
PCB Transport Height 900mm-965mm
PCB Temperature Ambient operating temperature is ~5⁰C to 40⁰C, maximum PCB temperature 80⁰C.
