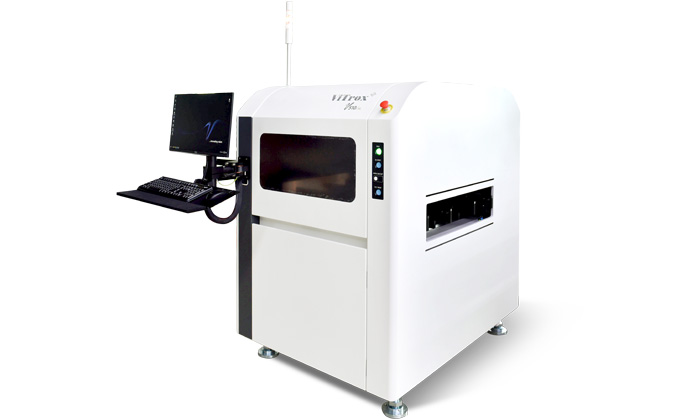

V510i XL : Advanced 3D Optical Inspection System (AOI)
The V510i XL AOI system is a next generation solution for the SMT line, offering the powerful 3D inspection capabilities.
| System | V510i XL | |
| System Performances | ||
| Inspection Functions | Missing, Offset, Skewed, Polarity, Billboard, Tombstone, Lifted/Bent Leads, Excess/Insufficient Solder, Overturn, Bridging, Wrong Part (OCV Marking), Pin Through Hole (Solderability & Pin Detection), Package Coplanarity, Lifted Lead (Height Measurement), Foreign Material Detection, Polarity Dimple Measurement | |
| Board Level Tracebility | Camera-Read Barcodes; External Barcode Reader Configured; OCR Capability with Batch Code Logging | |
| System Hardware | ||
| Operating System | Windows 10 Pro (64 bit) | |
| Optical Resolution & FOV Size | 12MP CoaXPress Camera Default: 60mmx45mm @ 15µm telecentric lens* Option: 53mmx39mm @ 13µm telecentric lens* Option: 32mmx24mm @ 8µm telecentric lens* |
|
| Inspection Speed | 12MP @ 15μm resolution: up to 64cm²/sec | |
| 3D Technologies | Phase Shift Profilometry’s (PSP) Methodology with 4-way projectors | |
| Lighting Module | Multiple Color, Multiple Angle, Multiple Segment LED Lighting Head, Auto Calibration Concurrent Lighting Module | |
| Conveyor Width Adjustment | Auto Width Adjustment; Bottom-Up Clamping; In-line SMEMA | |
| PCB Dimension | Standard | FDL |
| Maximum PCB Size (L x W) | 460mmx690mm (18.1''x27.1'') | DL Equal: 460mmx325mm (18.1''x12.7'') Single Lane: 460mmx600mm (18.1''x23.6'') |
| Minimum PCB Size (L x W) | 50mmx50mm (2”x2”) | 50mmx50mm (2”x2”) |
| Maximum PCB Inspectable Area (L x W) | 460mmx683mm (18.1''x26.8'') | DL Equal: 460mmx318mm (18.1''x12.5'') Single Lane: 460mmx593mm (18.1''x23.3'') |
| Maximum PCB Thickness | 7mm (0.27") | 7mm (0.27") |
| Minimum PCB Thickness | 0.5mm (0.02") | 0.5mm (0.02") |
| Maximum PCB Weight | 3kg | 3kg |
| Top Clearance of PCB | 50mm | 50mm |
| Bottom clearance of PCB | 100mm | 100mm |
| PCB Edge Clearance | 3.5mm | 3.5mm |
| PCB Transport Height | 875mm-965mm | 875mm-965mm |
| PCB Temperature | Ambient operating temperature is ~5⁰C to 40⁰C, maximum PCB temperature 80⁰C. | |
