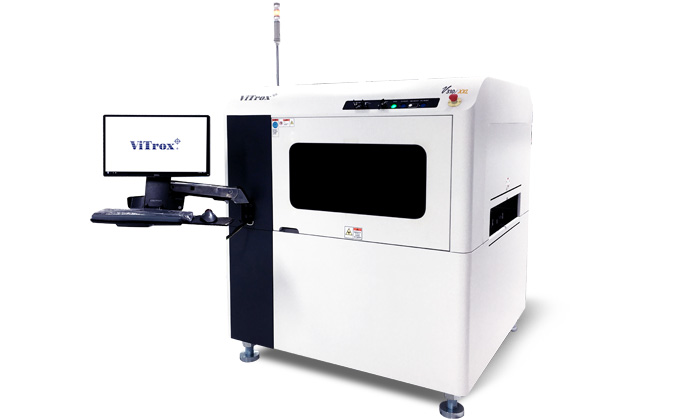

V310i XXL : Advanced 3D Solder Paste Inspection (SPI)


Largest Platform among all SPI Series which is able to cater up to 37.7”x23.6” board size with latest vision technologies.

System V310i XXL
System Performances
Inspection Functions Missing, XY Offset, Solder Height, Solder Area, Solder Volume and Bridge.
Board Level Tracebility Camera-Read Barcodes; External Barcode Reader Configured
System Hardware 12MP 4MP
Operating System Windows 10 Pro (64 bit)
Optical Resolution & FOV Size Default: 60mmx45mm @ 15µm telecentric lens
Option: 53mmx39mm @ 13µm telecentric lens
Option: 32mmx24mm @ 8µm telecentric lens
Default: 40mmx40mm @ 20µm telecentric lens
Inspection Speed 12MP CoaXPress @ 15µm Resolution: Up to 94cm²/sec

12MP CameraLink @ 15µm Resolution: Up to 60cm²/sec"
4MP CameraLink @ 20µm Resolution: Up to 55 cm²/sec
3D Technologies Phase Shift Profilometry’s (PSP) Methodology
Lighting Module Concurrent Lighting Module
Conveyor Width Adjustment Auto Width Adjustment; Bottom-Up Clamping; In-line SMEMA
PCB Dimension Standard FDL
Maximum PCB Size (L x W) 620mmx690mm (24.4”x27.2”)

Option:
960mmx690mm (37.8”x27.2”)
1150mmx690mm (45.2”x27.2”)
DL Equal: 620mmx325mm (24.4”x12.8”)
Single Lane: 620mmx600mm (24.4”x23.6”)

Option:
DL Equal: 960mmx325mm (37.8”x12.8”)
Single Lane: 960mmx600mm (37.8”x23.6”)
Minimum PCB Size (L x W) 50mmx50mm (2”x2”) 50mmx50mm (2”x2”)
Maximum PCB Inspectable Area (L x W) 620mmx683mm (24.4”x26.9”)

Option:
960mmx683mm (37.8”x26.9”)
1150mmx683mm (45.2”x26.9”)
DL Equal: 620mmx318mm (24.4”x12.5”)
Single Lane: 620mmx593mm (24.4”x23.3”)

Option:
DL Equal: 960mmx318mm (37.8”x12.5”)
Single Lane: 960mmx593mm (37.8”x23.3”)
Maximum PCB Thickness 15mm (0.59") 15mm (0.59")
Minimum PCB Thickness 0.5mm (0.02") 0.5mm (0.02")
Maximum PCB Weight 7kg 7kg
Top Clearance of PCB 50mm 50mm
Bottom clearance of PCB 70mm 70mm
PCB Edge Clearance 3.5mm 3.5mm
PCB Transport Height 890mm-965mm
PCB Temperature Ambient operating temperature is ~5⁰C to 40⁰C, maximum PCB temperature 80⁰C.
