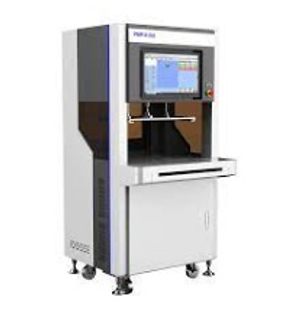

PTI-818SII

Features:

  • Integrate more functional modules (frequency, insulation, audio, CAN bus, boundary scan module.
  • Upgraded version of a more general programming module, supporting 70% chips.
  • Universal, easy-to-use external instrument calling platform.



  • Specifications
Test point: Standard:256 points ;max:4096 points
system: Windows7-10
Power Spec: 200-240VAC,Single Phase,50/60Hz 3KVA
Air Requirement: 4-8kg/cm2;  15liters/cycle
Environment: Temperature:0℃-40℃ Operating Humidity:20%-80%
Fixture Type: Manual type; Press type:Inline type

Open/short Test: 1000point1S,Innovation algorithm
Component Test: 0.5ms-30ms
PCBA Size: 450mm(W)-300mm(L)-100mm(H)

Resistance: 0.01mΩ-40MΩ
Capacitance: 10PF-60MF
Inductance: 10uH-60H

Programmable DC Voltage Source:±10VMAX,Resolution:10mV



Programmable DC Current Source:100mA MAX,Resolution:0.2mA

Programmable Frequency:100Hz,1KHz,10KHz,100KHz

DC Voltmeter:0±100V Resolution:3mV-50mV

DCAmmeter:1uA-50mA Resolution:30nA-50uA



Optional Function



Printer

Romote contorl and monitoring

MES API
