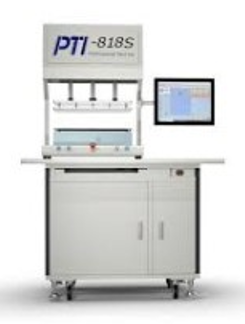

screenshot_2023-11-01_135531
PTI-818S

Features:

  • Phase measurement technology
  • Optocoupler measurement technology
  • Current measurement technology
  • Multiple points measurement
  • Looking for equipotential isolation point automatically
  • High voltage detecting and discharging technology
  • Circuits of R,L,C components value measurement
  • 16 input/output GPIO port



  • Specifications
Test Pin Point: Standard Configuration:256 Point, Max extension 768point or 2048 point
System: XP/WIN7/WIN8/WIN10
Power Spec: AC100V-120V ,200V-240V/50HZ-60HZ/350
Test Method: Manual press type, manual fixture type, automatic type
Test item : maximum:100,000,Setps
AVR( DC voltage source) 0—+/-10V   Precision: 5mV
AVR (DC current source) max:100mA   precision: 10uA-1mA
AVR (AC voltage source) 10Hz—1MHz  precision: 1Hz-10Hz
DC voltage test 0—+/-100V   precision:3mV-50mV
DC current test 10uA—200 mA   precision: 1uA-1mA

Test range and conventional precision:

R CC (0.01Ω—40M)General:1%-3%
CV
Phase
 L  A (10uH—60H)General:1%-5%
Phase
C A (1PF—1F)



General:1%-5%

DC
Phase
DC current (1uA—-1A)(0.5%—5%)
DC voltage (0—100v)(0.5%—3%)
Diode / transistor test 16 groups of general GPIO

optional:

Open testing TESJET technology Update measurable smaller IC and connector
Frequency test max 200MHz     precision: 1Hz-50Hz
  LED color and light measurement module
Audio analyzer Audio analyzer and Signal to Noise ratio、THD and THD + N analyzer
  Support external EPROM, electronic load and oscilloscope.

DUT power module:

1 set High voltage DC constant current power supply: 10uA-100mA/100V(MAX)
1set High voltage DC constant voltage power supply: 10V-100V/100mA(MAX)
2 sets AVR (voltage source): 1-20V, 0.5A-2A,10Watt, current measurement 10uA-2A



(Constant voltage current limiting)

4 sets fixed output power: +12V, -12v ,+5v, +24v /1000mA(MAX)
Supports external AVR: USB/GPIB/COM external AVR

serial test module:

2 sets serial test channel, rate can be up to 1 m
Serial communication protocol: IIC,SPI,UART
Boundary scan function: JATG interface scan and functional test
A 16-bit digital IO port: Vih:0.8-4.6V;Voh:0.1-4.9V



Pneumatic : cylinder bore 100mm,cylinder stroke  200,maximum pressure:470kg/6Bar
Air pressure: 4-6kg/cm2,:4Liter/Cycle
Environment: temperature: 0℃-40℃,Operating humidity:20%-80%
Size: (Small frame):350mm(L)*280mm(W)*300mm(H)
  (MAX frame):520mm(L)*280mm(W)*380mm(H)
Size: 1000mm(L)*900mm(W)*1900mm(H)
