GW Instek launches new economical safety testers (hi-pot tester/hipot tester), the GPT-9600 Series, which offers an affordable solution for supporting routine tests of major items of the safety standards such as IEC, EN, UL, CSA, GB, JIS and other safety regulations.   The GPT-9600 Series is built ...Read more

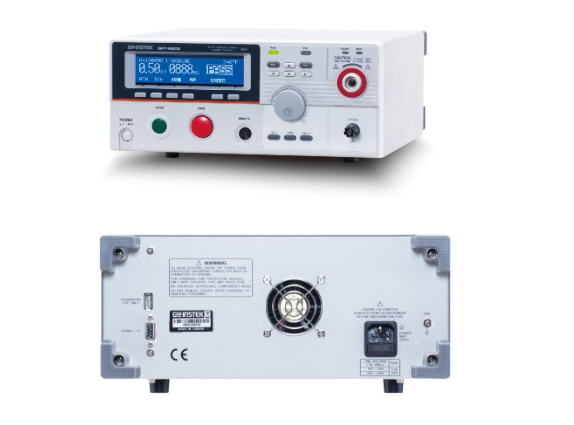

GW Instek - GPT-9600 Electrical Safety Tester

FEATURES :

  • 100VA AC Test Capacity
  • 240x48 Ice Blue Dot matrix LCD
  • Auto W-I or I-W Mode
  • ARC Detection
  • True RMS Current Measurement
  • Zero Crossing Turn-on Operation
  • Safety INTERLOCK function
  • PWM amplifier to enhance the power efficiency and reliable testing
  • Automatically Switching Input Source for Universal Input Voltage
  • Interface : Remote terminal and Signal I/O



  • Details
  • Specifications

GW Instek launches new economical safety testers (hi-pot tester/hipot tester), the GPT-9600 Series, which offers an affordable solution for supporting routine tests of major items of the safety standards such as IEC, EN, UL, CSA, GB, JIS and other safety regulations.



The GPT-9600 Series is built upon a platform of 100VA AC maximum power output. The GPT-9603 is a 3-in-1 model capable of performing AC withstanding, DC withstanding and insulation resistance tests. The GPT-9612 is capable of performing AC withstanding and insulation resistance tests. The GPT-9602 is capable of performing AC and DC withstanding tests, and GPT-9601 is able to perform AC withstanding test. The GPT-9600 Series is equipped with the high-efficiency PWM amplifier, which is the core of the platform design to impede the influence from the input AC voltage fluctuation and ensure a stable voltage output.



Following a tidy and easy-to–use design concept, the GPT-9600 Series renders users an intuitive operation environment by a simple and clear panel layout, a large LCD display and color LED indicators. The switching power supply, used as a universal input source, accommodates the power systems in most countries in the world. The GPT-9600 series, equipped with the same output voltage function as that of all GW Instek Safety Testers, indicates the expected output voltage before high voltage tests are applied. Furthermore, an AUTO mode, including test sequence selections of withstanding-then-insulation or insulation-then-withstanding, is designed for models carrying insulation Resistance test function to reduce the testing time of dual test items.



Other functions and features of GPT-9600 include: the zero crossing turn-on operation protects DUT from the impact of surge voltage output, the interlock function safeguards users from the hazardous shock of unintentional touch of the voltage output, a remote output on-off terminal in the front panel and a signal I/O port in the rear panel are provided as the means for remote start/stop control of the safety tester (hi-pot tester/hipot tester).

GPT-9600 Specifications

The specifications apply when the GPT-9600 is powered on for at least 30 minutes under +20°C~+30°C.

Model \ Func.

AC

WITHSTANDING

DC

WITHSTANDING

INSULATION RESISITANCE

GPT-9603

GPT-9612

?

GPT-9602

?

GPT-9601

?

?



AC WITHSTANDING

Output-Voltage Range

0.10kV~ 5.00kV ac

Output-Voltage Resolution

10V

Output-Voltage Accuracy

± (1.5% of setting + 2 counts) with no load

Maximum Rated Load

100 VA (5kV/20mA)

Maximum Rated Current

20mA (0.5kV V  5kV)

5mA (0.1kV  V 0.5kV)

Output-Voltage Waveform

Sine wave

Output-Voltage Frequency

50 Hz / 60 Hz selectable

Voltage regulation

± (1.5% + 2 counts) [full load → no load]

Voltmeter Accuracy

± (1.5% of reading + 2 counts)

Current Measurement Range

0.01mA~20.0mA

Current Best Resolution

0.01mA / 0.1mA

Current Measurement Accuracy

±(2.0% of reading + 5 counts) when HISET 1.00mA

±(2.0% of reading + 3 counts) when HISET  1.00mA

Current Judgment Accuracy

±(3.0% of setting + 5 counts) when HISET 1.00mA

±(3.0% of setting + 3 counts) when HISET  1.00mA

Window Comparator Method

Yes

ARC Detect

Yes

RAMP (Ramp-Up Time)

0.1s fixed

TIMER (Test Time)

OFF, 1s~180s

GND

ON

DC WITHSTANDING

Output-Voltage Range

0.10kV~ 6.00kV dc

Output-Voltage Resolution

10V

Output-Voltage Accuracy

± (1.5% of setting + 2 counts) with no load

Maximum Rated Load

25W (5kV/5mA)

Maximum Rated Current

6mA (0.5kV V  6kV)

2mA (0.1kV  V 0.5kV)

Voltage regulation

± (1.5% + 2 counts) [full load → no load]

Voltmeter Accuracy

± (1.5% of reading + 2 counts)

Current Measurement Range

0.01mA~6.00mA

Current Best Resolution

0.01mA

Current Measurement Accuracy

±(2.0% of reading + 5 counts) when HISET 1.00mA

±(2.0% of reading + 3 counts) when HISET  1.00mA

Current Judgment Accuracy

±(3.0% of setting + 5 counts) when HISET 1.00mA

±(3.0% of setting + 3 counts) when HISET  1.00mA

Window Comparator Method

Yes

ARC Detect

Yes

RAMP (Ramp-Up Time)

0.1s fixed

TIMER (Test Time)

OFF, 1s~180s

GND

ON

INSULATION RESISITANCE

Output-Voltage

50V, 100V, 250V, 500V, 1000V dc

Output-Voltage Accuracy

± (3.0% of setting + 1 count) [no load]

Resistance Measurement Range

1MW~ 2000 Mohm



Test voltage

Measurable Range

Accuracy



50V/100V/250V

1~ 50 Mohm

51~ 2000 Mohm

±(5% of reading + 2MΩ)

±(10% of reading + 2MΩ)



500V/1000V

1~ 500 Mohm

501~ 2000 Mohm

±(5% of reading + 2MΩ)

±(10% of reading + 2MΩ)

Window Comparator Method

Yes

Output Impedance

600 kohm

RAMP (Ramp-Up Time)

0.1s fixed

TIMER (Test Time)

OFF, 1s~180s

GND

OFF (fixed)

TEST MODE*

SINGLE

ACW, DCW, IR

AUTO

AC-IR, IR-AC, DC-IR, IR-DC

INTERFACE

Remote Terminal (Front)

Standard

SIGNAL IO

Standard

General

DISPLY

240 x 48 Ice Blue dot matrix LCD

POWER SOURCE

AC 100V-120V/220V-240V ±10%, 50/60Hz

POWER COMSUMPTION

400VA max.

DIMENSIONS & WEIGHT

330(W) x 148(H) x 385(D) mm

approx.9kg(Max)

* The available “Test Mode” depends on selected model
